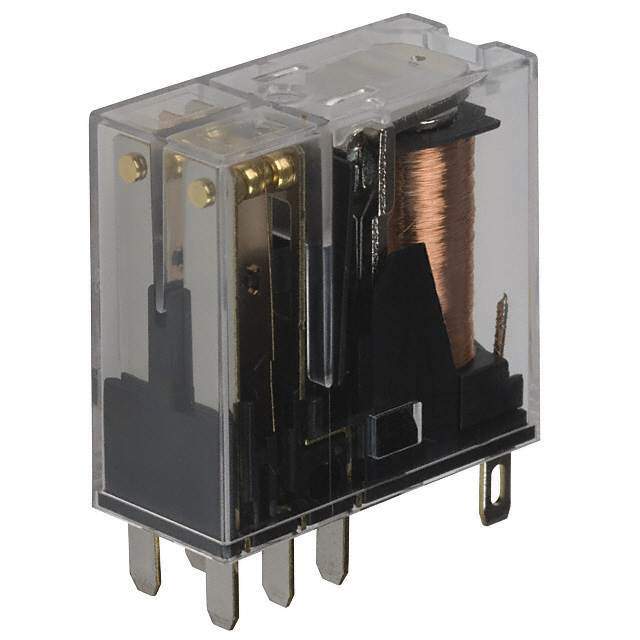

AHN22324N Real Image
Same model may have multiple batches, images only for reference.

AHN22324N

Part No AHN22324N
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description Slim and compact size | RELAY GEN PURPOSE DPDT 5A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Box
Mounting Style Socketable
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 22.0mA
Coil Type Non Latching
Features Diode, Lighted Indicator
Termination Style Plug In
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 15ms
Release Time 20ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 1.09 kOhms
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1143020-AHN22324N
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AHN22324N CAD Model

Description

The Panasonic Electric Works 1143020-AHN22324N is a DPDT (2 Form C) General Purpose Relay, featuring a coil voltage of 24VDC and a coil resistance of 1.09 kOhms. Bold the product name (e.g., BAV99S,135 → 1143020-AHN22324N) and manufacturer (e.g., Nexperia USA Inc. → Panasonic Electric Works).

  • Coil Voltage: 24VDC
  • Coil Resistance: 1.09 kOhms
  • Switching Voltage: 250VAC
  • Switching Voltage: 30VDC max
  • Contact Rating: 5A
  • Termination Style: Plug-in
  • Mounting Style: Socketable
  • Features: Diode and Lighted Indicator
  • Operate Time: 15ms
  • Release Time: 20ms
  • Contact Material: Silver Nickel (AgNi)
  • Coil Type: Non-Latching
  • Temperature Range: -40°C to 70°C
  • Packaging: Box
  • Manufacturer Pack Quantity: 50
