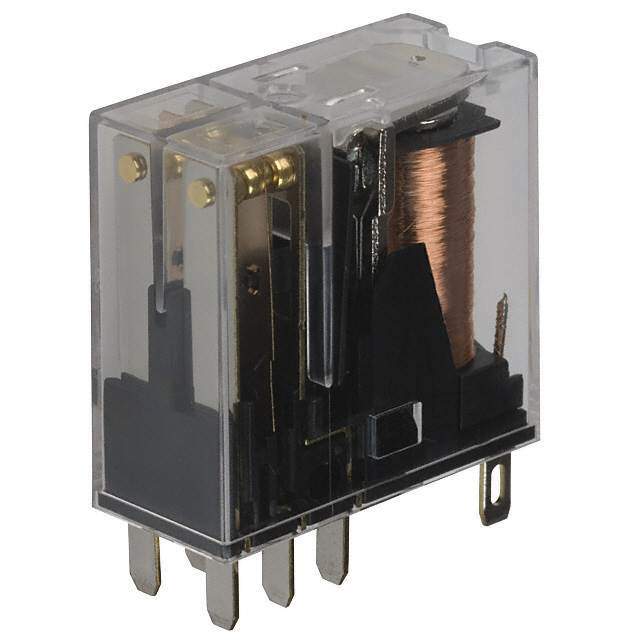

AHN22124N Real Image
Same model may have multiple batches, images only for reference.

AHN22124N

Part No AHN22124N
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description Relay for control panel of 1c 10A, 2c 5A and 1a 16A | RELAY GEN PURPOSE DPDT 5A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Box
Mounting Style Socketable
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 22.0mA
Coil Type Non Latching
Features Lighted Indicator
Termination Style Plug In
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 15ms
Release Time 5ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 1.09 kOhms
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1143019-AHN22124N
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AHN22124N CAD Model

Description

The Panasonic Electric Works 1143019-AHN22124N is a DPDT (2 Form C) relay with a contact rating of 5A and a switching voltage of 250VAC, 30VDC - Max.

  • Coil Voltage: 24VDC
  • Coil Resistance: 1.09 kOhms
  • Coil Type: Non-latching
  • Seal Rating: -
  • Temperature Range: -40°C ~ 70°C
  • Application: Suitable for general purpose applications.
  • Supply and Demand Status: Balanced
  • Packaging: Box packaging
