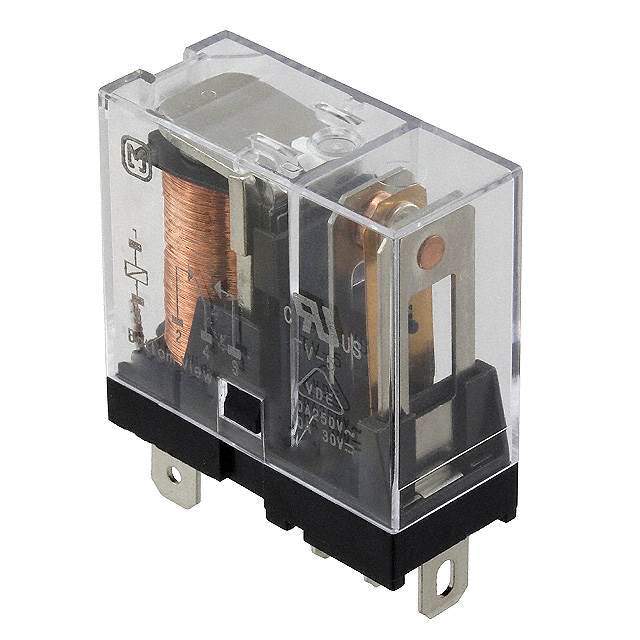

AHN12024 Real Image
Same model may have multiple batches, images only for reference.

AHN12024

Part No AHN12024
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series AHN
Package Tube
Product Status Obsolete
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 22 mA
Coil Type Non Latching
Termination Style Plug In
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 50°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 1.09 kOhms
Base Product Number AHN120
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names AHN12024-ND,255-4101-5
Standard Package 500
Win Source Part Number 1044110-AHN12024
Ultra Librarian 3D Model Ultra Librarian AHN12024 CAD Model

Description

The AHN12024 is a power relay from Panasonic Electric Works.

  • Coil Type: Non-Latching
  • Coil Voltage: 24VDC
  • Coil Current: 22 mA
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver Nickel (AgNi)
  • Contact Rating: 16 A
  • Switching Voltage: 250VAC and 30VDC - Max
  • Operate Time: 15 ms
  • Release Time: 5 ms
  • Mounting: Socketable
  • Temperature Range: -40°C to 50°C
  • Package: Tube
  • Standard Package: 500
