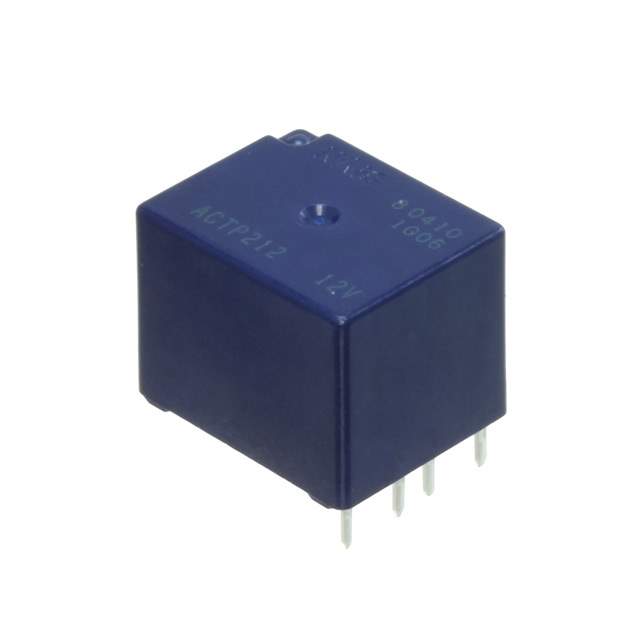

ACTP212 Real Image1 ACTP212 Real Image2
Same model may have multiple batches, images only for reference.
ACTP212 Real Image1 ACTP212 Real Image2
ACTP212 Real Image1 ACTP212 Real Image2
Same model may have multiple batches, images only for reference.

ACTP212

Part No ACTP212
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY AUTOMOTIVE SPDTX2 30A 12V
Datasheet
ACTP212 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Series ACTP
Packaging Tube
Relay Type Automotive
Coil Type Non Latching
Coil Current 83.3mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C) Dual
Contact Rating (Current) 30A
Switching Voltage 14VDC - Nom
Turn On Voltage (Maximum) 7.2 VDC
Turn Off Voltage (Minimum) 1 VDC
Operate Time 10ms
Release Time 10ms
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Alloy, Cadmium Free
Coil Power 1 W
Coil Resistance 144 Ohms
Operating Temperature Range -40°C ~ 85°C
Win Source Part Number 767027-ACTP212
Popularity Medium
Supply and Demand Status Limited
Family Name CT
Introduction Date April 13, 2000
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian ACTP212 CAD Model

Description

The Panasonic Electric Works 767027-ACTP212 is a medium-popularity ACTP series automotive relay that comes in a tube packaging and has PC pin termination style.

  • Mounting: Through Hole
  • Operating Temperature Range: -40°C to 85°C
  • Contact Form: Dual SPDT (1 Form C)
  • Contact Material: Silver Alloy, Cadmium Free
  • Coil Resistance: 144 Ohms
  • Coil Current: 83.3mA
  • Operate Time: 10ms
  • Release Time: 10ms
  • Coil Type: Non-Latching
  • Coil Voltage: 12VDC
  • Switching Voltage: 14VDC - Nom.
  • Contact Rating (Current): 30A
  • Turn-on Voltage (Maximum): 7.2VDC
  • Turn-off Voltage (Minimum): 1VDC
  • Coil Power: 1W
  • Introduction Date: April 13, 2000
  • Category: Relays
  • Estimated EOL Date: 2025
