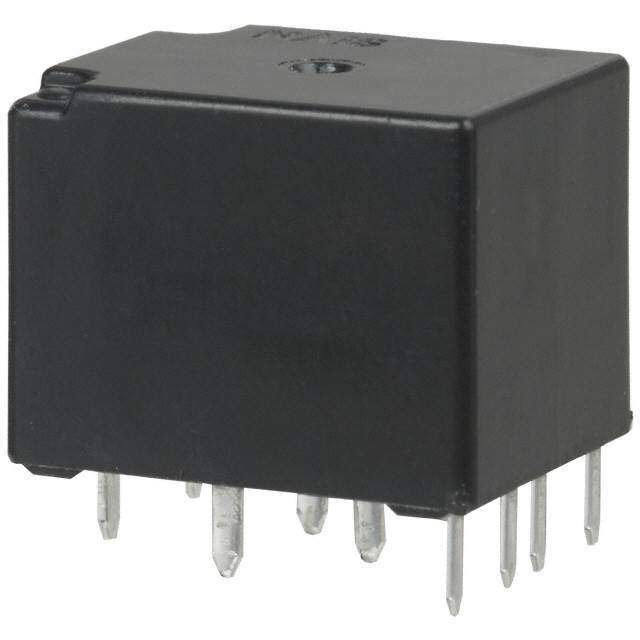

ACT512

Part No ACT512
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY AUTOMOTIVE SPDTX2 20A 12V / Power Relay 12VDC 20(NO)/10(NC)A DPDT(17.4x14x13.5)mm THT Automotive
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic
Standard Package 30
Category Relays
Family Power Relays Over 2 Amps
Series ACT
Packaging Tube
Relay Type Automotive
Coil Type Non Latching
Coil Current 66.7mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C) Dual
Contact Rating (Current) 20A
Switching Voltage 14VDC - Nom
Turn On Voltage (Max) 7.2 VDC
Turn Off Voltage (Min) 1 VDC
Operate Time 10ms
Release Time 10ms
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Alloy Cadmium Free
Coil Power 800 mW
Coil Resistance 180 Ohms
Operating Temperature Range -40°C ~ 85°C
Catalog ACT Series
Win Source Part Number 058173-ACT512
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Automotive, Industrial, Consumer Electronics
Family Name ACT
Introduction Date October 25, 2006
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ACT512 CAD Model

Description

ACT512 Electronic Component

The ACT512 component is engineered for high accuracy and precision in electronic circuits. It is an excellent choice for projects that require minimal error and maximum performance efficiency.

  • Applications/Projects:
    • Signal processing equipment
    • Data acquisition systems
    • Medical devices
    • Instrumentation and control systems
    • Consumer electronics
  • Features and Benefits:
    • High precision output
    • Low noise and distortion
    • Compact and lightweight design
    • Wide input voltage range
    • Stable operation across varying temperatures
  • Additional Details:

    The ACT512 is designed with advanced technology that allows for seamless operation in sophisticated electronic circuits. Its precision capabilities make it suitable for sensitive applications where accuracy is paramount.
