Same model may have multiple batches, images only for reference.

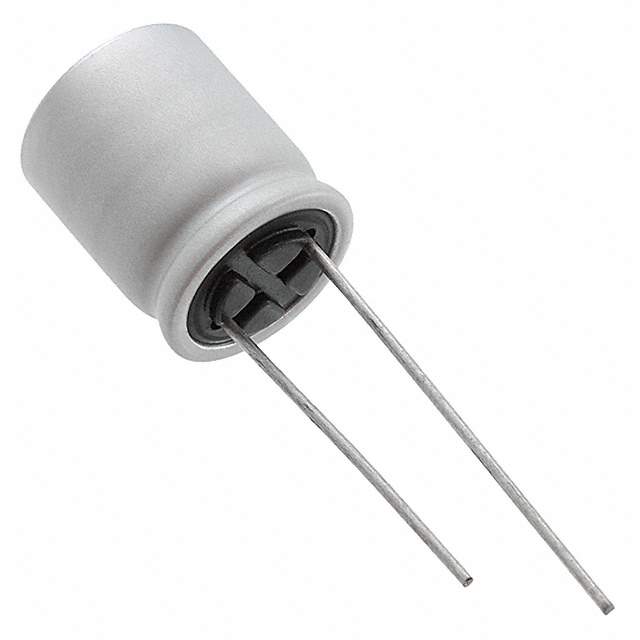

6SEP820M Real Image
Same model may have multiple batches, images only for reference.

6SEP820M

Part No 6SEP820M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 820UF 20% 6.3V T/H / Radial Lead Type
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic Electronic Components
Packaging Bulk
Type Polymer
Capacitance 820μF
Tolerance ±20%
Voltage - Rated 6.3V
ESR (Equivalent Series Resistance) 12mOhm
Lifetime at Temp. 3000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications Use For General
Ripple Current at Low Frequency 272mA at 120Hz
Ripple Current at High Frequency 5.44A at 100kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Maximum) 0.512" (13.00mm)
Mounting Style Through Hole
Manufacturer Package Radial, Can
Manufacturer Pack Quantity 200
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809620-6SEP820M
Ultra Librarian 3D Model Ultra Librarian 6SEP820M CAD Model

Description

The Panasonic Electronic Components 6SEP820M electronic component is a polymer capacitor manufactured by Panasonic Electronic Components and is available through the Win Source Part Number 809620.

  • Capacitance: 820μF
  • Tolerance: ±20%
  • Voltage Rating: 6.3V
  • ESR (Equivalent Series Resistance): 12mOhm
  • Package: Radial, can
  • Lead Spacing: 0.197" (5.00mm)
