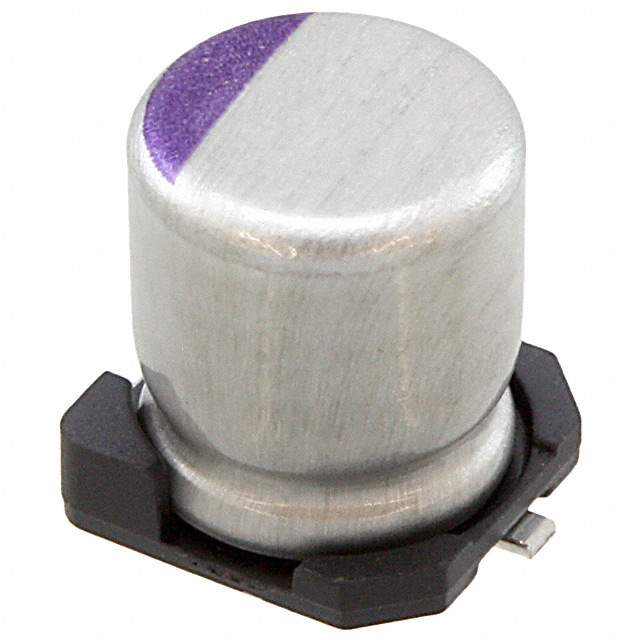

Same model may have multiple batches, images only for reference.

4SVPA150MAA

Name: 4SVPA150MAA
Brand: Panasonic
SKU: 799183
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	4SVPA150MAA
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 150UF 20% 4V SMD / Cap Aluminum Polymer 150uF 4VDC 20% (6.3 X 5.9mm) SMD 0.022 Ohm 2570mA 2000h 105°C T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Panasonic Electronic Components
Series	OS-CON, SVPA
Type	Polymer
Capacitance	150μF
Tolerance	±20%
Voltage Rating DC	4V
Equivalent Series Resistance	22 mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature Range	-55°C ~ 105°C
Ripple Current - Low Frequency	128.5mA @ 120Hz
Ripple Current - High Frequency	2.57A @ 100kHz
Dimension	0.248" Dia (6.30mm)
Height - Seated (Maximum)	0.236" (6.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting	SMD
Package	Radial, Can - SMD
Win Source Part Number	799183-4SVPA150MAA
Popularity	Medium
Supply and Demand Status	Limited
Family Name	SVPA
Introduction Date	October 19, 2004
ECCN	EAR99
Country of Origin	Japan
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian 4SVPA150MAA CAD Model

Description

The Panasonic Electronic Components SVPA series is a polymer type capacitor from Panasonic Electronic Components.

Capacitance: 150μF
Tolerance: ±20%
Operating Temperature: -55°C to 105°C
Voltage Rating: 4V
Lifetime: 2000 hours @ 105°C
Ripple Current: 128.5mA @ 120Hz, 2.57A @ 100kHz
Equivalent Series Resistance: 22 mOhm
Package: Radial, Can - SMD
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
Family: SVPA
Estimated EOL Date: 2027
