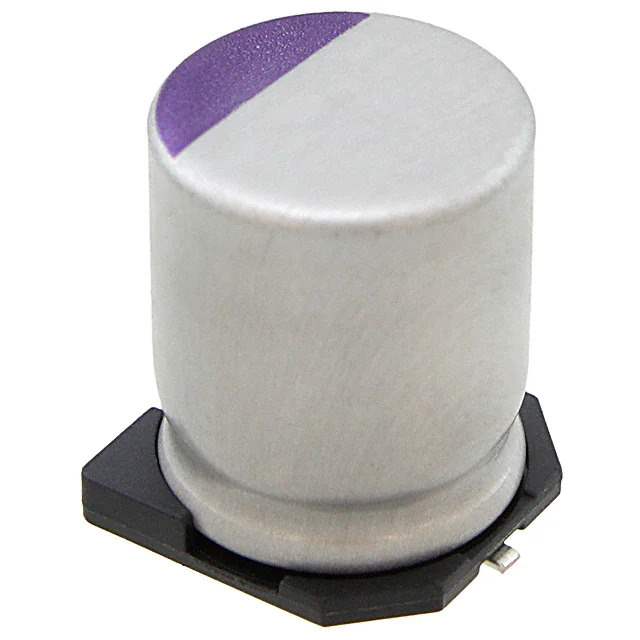

Same model may have multiple batches, images only for reference.

35SVPF120M

Name: 35SVPF120M
Brand: Panasonic
SKU: 849047
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	35SVPF120M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 120UF 20% 35V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic
Series	OS-CON™, SVPF
Package	Tape & Reel
Product Status	Active
Type	Polymer
Capacitance	120 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	18mOhm
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Ripple Current @ Low Frequency	220 mA @ 120 Hz
Ripple Current @ High Frequency	4.4 A @ 100 kHz
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.500" (12.70mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	35SVPF
Standard Package	400 pcs
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	849047-35SVPF120M
Ultra Librarian 3D Model	Ultra Librarian 35SVPF120M CAD Model

Description

The Panasonic 849047-35SVPF120M is a polymer capacitor from the OS-CON™, SVPF series.

Category: Capacitors - Aluminum - Polymer Capacitors
Package: Tape and Reel
Size/Dimension: 0.394" Dia (10.00mm)
Application: General Purpose
Capacitance: 120 μF
Tolerance: ±20%
Rated Voltage: 35V
ESR: 18mOhm
Lifetime: 5000 Hours @ 105°C
Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
Package Type: Radial, Can - SMD
Operating Temperature: -55°C to 105°C
ECCN: EAR99
Manufacturer: Panasonic
