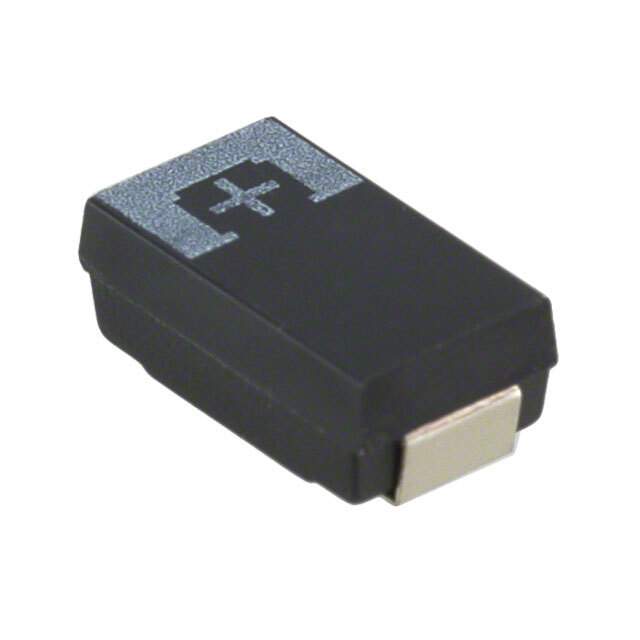

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel
Capacitance 330μF
Tolerance ±20%
Voltage - Rated 2V
Type Molded
ESR (Equivalent Series Resistance) 6mOhm at 100kHz
Temperature Range - Operating -55°C ~ 105°C
Lifetime at Temp. 2000 Hrs at 105°C
Mounting Style SMD
Manufacturer Package 2917 (7343 Metric)
Parts Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Manufacturer Size Code D2E
Features General Purpose
Manufacturer Pack Quantity 1
MSL Level 2A (4 Weeks)
Win Source Part Number 1127909-2TPF330M6
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2TPF330M6 CAD Model

Description

The 2TPF330M6 is a molded type capacitor manufactured by Panasonic Electronic Components.

  • Capacitance: 330μF
  • Tolerance: ±20%
  • Voltage Rated: 2V
  • ESR (Equivalent Series Resistance): 6mOhm @ 100kHz
  • Manufacturer Size Code: D2E
  • Supply and Demand Status: Limited
  • Popularity: Medium
  • Manufacturer's Homepage: www.panasonic.com/industrial/
  • Win Source Part Number: 1127909-2TPF330M6
