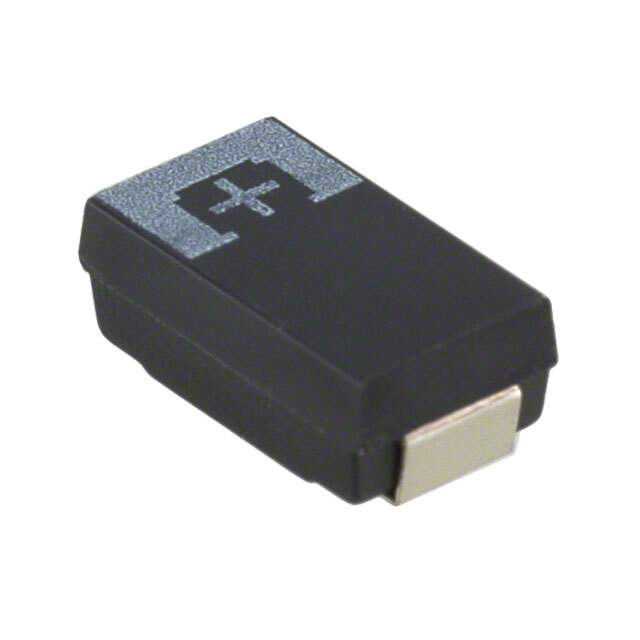

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 330μF
Tolerance ±20%
Voltage Rating 2.5V
Type Molded
ESR 7 mOhm
Temperature Range - Operating -55°C to 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD (SMT)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.118" (3.00mm)
Manufacturer Size Code D3L
Features General Purpose
Win Source Part Number 110278-2R5TPF330M7L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 2,500
Family Name TPF
Introduction Date July 29, 2011
ECCN EAR99
Country of Origin Indonesia, Japan
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian 2R5TPF330M7L CAD Model

Description

2R5TPF330M7L Tantalum Capacitor

The 2R5TPF330M7L tantalum capacitor provides an optimal balance of size and capacitance, featuring a capacity of 330μF at a 2.5V rating. It is particularly useful in precision electronic applications.

  • Applications:
    • High-frequency decoupling
    • Low-power consumption circuits
    • Digital circuitry stability
  • Features and Benefits:
    • Enhanced temperature stability for precise operations
    • Compact footprint for versatile mounting
    • Durable in high-vibration settings

This capacitor is perfect for projects that require a combination of high performance and miniaturization, supporting both inexperienced and seasoned engineers in creating efficient designs.
