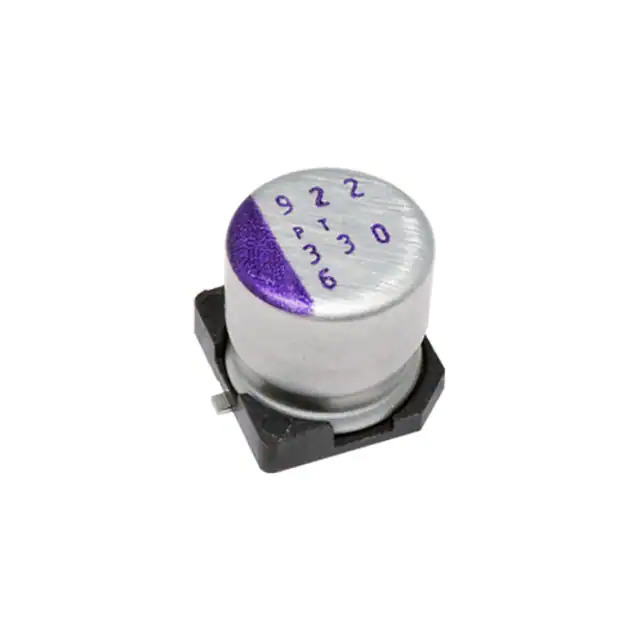

Same model may have multiple batches, images only for reference.
2R5SVPT560M Panasonic
Same model may have multiple batches, images only for reference.

2R5SVPT560M

Part No 2R5SVPT560M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 560UF 20% 2.5V SMD / 560 µF 2.5 V Aluminum - Polymer Capacitors Radial, Can - SMD 16mOhm 20000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVPT
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 2.5 V
ESR (Equivalent Series Resistance) 16mOhm
Lifetime @ Temp. 20000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 175 mA @ 120 Hz
Ripple Current @ High Frequency 3.5 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.256" (6.50mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 2R5SVPT
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359482-2R5SVPT560M
Ultra Librarian 3D Model Ultra Librarian 2R5SVPT560M CAD Model

Description

The 1359482-2R5SVPT560M, OS-CON SVPT series polymer capacitor from Panasonic Electronic Components, is a high-quality capacitor designed for general-purpose applications.

  • Capacitance: 560μF
  • Voltage Rating: 2.5V
  • Mounting: Surface mount
  • Package: Radial, Can - SMD
  • Equivalent Series Resistance (ESR): 16mOhm
  • Lifetime: 20000 hours @ 105°C
  • Product Status: Active
