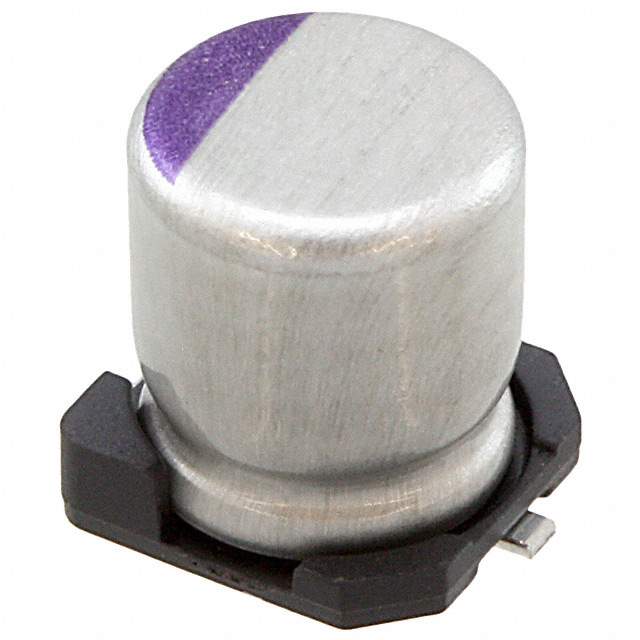

2R5SVPB120M Real Image
Same model may have multiple batches, images only for reference.

2R5SVPB120M

Part No 2R5SVPB120M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 120UF 20% 2.5V SMD
Datasheet
2R5SVPB120M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series OS-CON, SVPB
Type Polymer
Capacitance 120μF
Tolerance ±20%
Voltage Rating 2.5V
ESR (Equivalent Series Resistance) 40 mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Ripple Current - Low Frequency 83.5mA @ 120Hz
Ripple Current - High Frequency 1.67A @ 100kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.197" (5.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 761822-2R5SVPB120M
Popularity Medium
Supply and Demand Status Balance
Family Name SVPB
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 2R5SVPB120M CAD Model

Description

The OS-CON SVPB series polymer type capacitor from Panasonic Electronic Components.

  • Capacitance: 120μF
  • Voltage Rating: 2.5V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 40 mOhm
  • Mounting Type: Surface mount
  • Ripple Current: 83.5mA @ 120Hz, 1.67A @ 100kHz
  • Lifetime: 1000 Hrs @ 105°C
  • EOL Date: Estimated 2028
  • Applications: Power supply circuits, DC-DC converters, and other electronic devices
  • Manufacturer: Panasonic Electronic Components
  • Popularity: Medium
  • Supply and Demand: Balanced
  • Win Source Part Number: 761822-2R5SVPB120M
