Same model may have multiple batches, images only for reference.

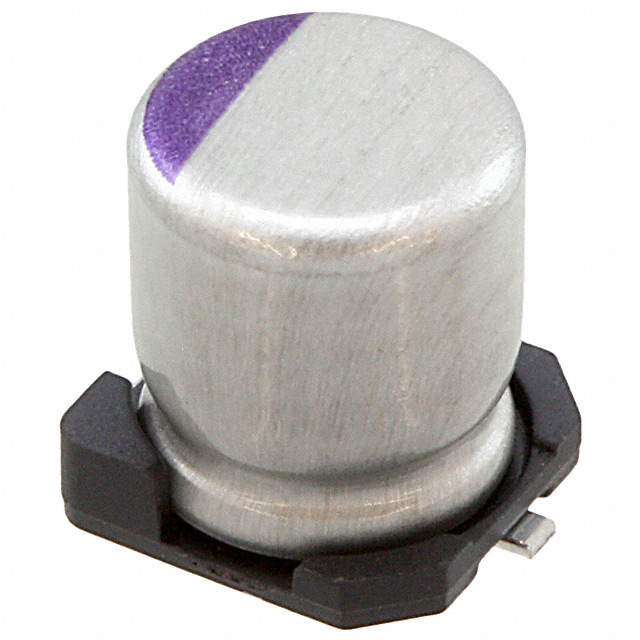

2R5SVPA820M Real Image
Same model may have multiple batches, images only for reference.

2R5SVPA820M

Part No 2R5SVPA820M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 820UF 20% 2.5V SMD  /  820 µF 2.5 V Aluminum - Polymer Capacitors Radial, Can - SMD 19mOhm 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVPA
Package Tape & Reel
Type Polymer
Capacitance 820 µF
Tolerance ±20%
Voltage - Rated 2.5 V
ESR (Equivalent Series Resistance) 19mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 212 mA @ 120 Hz
Ripple Current @ High Frequency 4.24 A @ 100 kHz
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number 2R5SVPA
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Names P122173DKR,P122173TR,P122173CT
Standard Package 500
Win Source Part Number 1172761-2R5SVPA820M
Ultra Librarian 3D Model Ultra Librarian 2R5SVPA820M CAD Model

Description

The OS-CON™ SVPA series aluminum polymer capacitors are designed to provide high capacitance and low ESR values in a compact package.

  • Capacitance: 820 µF
  • Voltage Rating: 2.5 V
  • Package: Radial, Can - SMD
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • ESR: 19mOhm
  • Lifetime: 2000 Hrs @ 105°C
  • Applications: General Purpose
  • Standard Package: 500 units
  • Tolerance: ±20%
