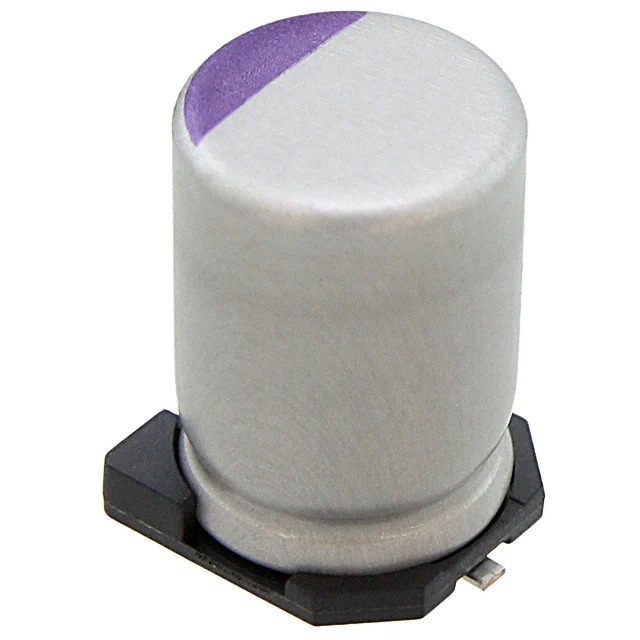

20SVPF390M Panasonic
Same model may have multiple batches, images only for reference.

20SVPF390M

Part No 20SVPF390M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 390UF 20% 20V SMD / 390 µF 20 V Aluminum - Polymer Capacitors Radial, Can - SMD 14mOhm 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVPF
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 390 µF
Tolerance ±20%
Voltage - Rated 20 V
ESR (Equivalent Series Resistance) 14mOhm
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 247.5 mA @ 120 Hz
Ripple Current @ High Frequency 4.95 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 20SVPF
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359590-20SVPF390M
Ultra Librarian 3D Model Ultra Librarian 20SVPF390M CAD Model

Description

The 20SVPF390M is a polymer capacitor from Panasonic Electronic Components.

  • Series: OS-CON™ SVPF
  • Capacitance: 390µF
  • Voltage Rating: 20V
  • Operating Temperature: -55°C ~ 105°C
  • Package / Case: Radial, Can - SMD
  • Mounting Type: Surface Mount
  • Size / Dimension: Diameter 8.00mm, Height 12.00mm
  • Height - Seated (Max): 12.00mm
  • Ripple Current - Low Frequency: 247.5mA
  • Ripple Current - High Frequency: 4.95A
  • Packaging: Tape & Reel (TR)
  • Applications: Power Electronics, Telecommunications, Automotive
