Same model may have multiple batches, images only for reference.

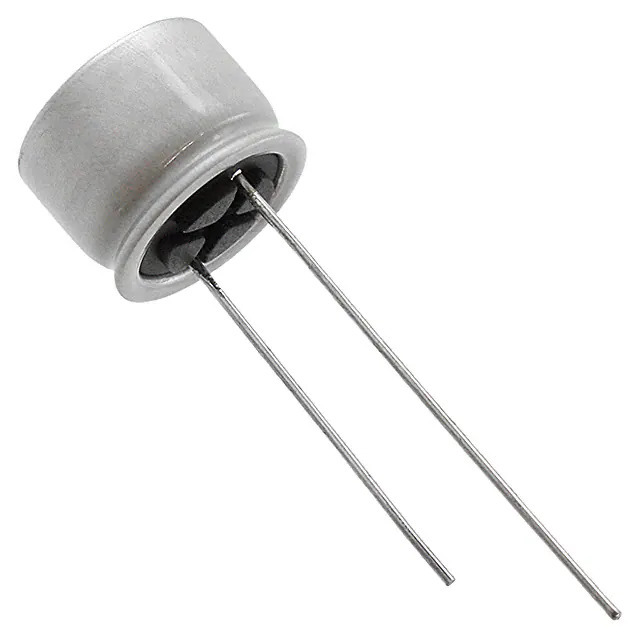

20SEP100MX Panasonic
Same model may have multiple batches, images only for reference.

20SEP100MX

Part No 20SEP100MX
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 100UF 20% 20V T/H / 100 µF 20 V Aluminum - Polymer Capacitors Radial, Can 35mOhm 3000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SEP
Package Bulk
Product Status Active
Type Polymer
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 20 V
ESR (Equivalent Series Resistance) 35mOhm
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 128.5 mA @ 120 Hz
Ripple Current @ High Frequency 2.57 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number 20SEP
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359586-20SEP100MX
Ultra Librarian 3D Model Ultra Librarian 20SEP100MX CAD Model

Description

The 20SEP100MX is a polymer capacitor from Panasonic Electronic Components.

  • Series: OS-CON™ SEP
  • Capacitance: 100µF
  • Voltage Rating: 20V
  • Operating Temperature: -55°C ~ 105°C
  • Package / Case: Radial, Can
  • Mounting Type: Through Hole
  • Size / Dimension: Diameter 10.00mm, Height 8.00mm
  • Height - Seated (Max): 8.00mm
  • Ripple Current - Low Frequency: 128.5mA
  • Ripple Current - High Frequency: 2.57A
  • Applications: Power Electronics, Telecommunications, Automotive
