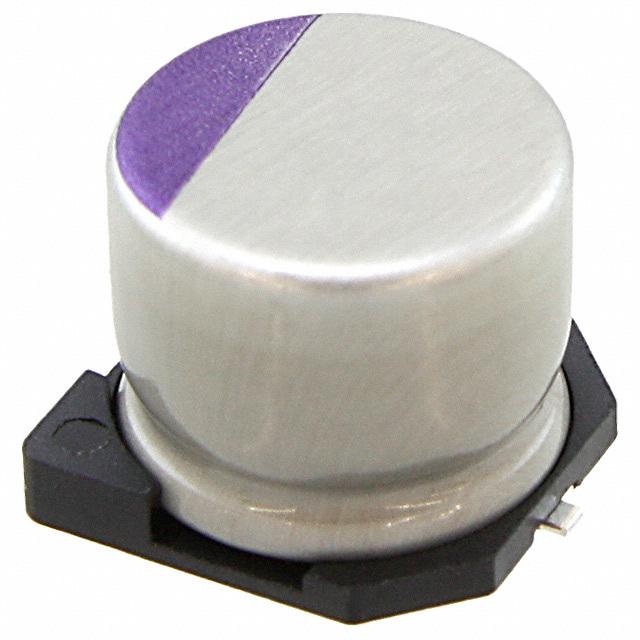

Same model may have multiple batches, images only for reference.

16SVP82M

Name: 16SVP82M
Brand: Panasonic
SKU: 760580
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	16SVP82M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 82UF 20% 16V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Panasonic Electronic Components
Series	OS-CON, SVP
Packaging	Reel package
Type	Polymer
Capacitance	82μF
Tolerance	±20%
Voltage Rating	16V
ESR (Equivalent Series Resistance)	40 mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature Range	-55°C ~ 105°C
Ripple Current - Low Frequency	106mA @ 120Hz
Ripple Current - High Frequency	2.12A @ 100kHz
Dimension	0.315" Dia (8.00mm)
Height - Seated (Maximum)	0.276" (7.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting	SMD
Package	Radial, Can - SMD
Win Source Part Number	760580-16SVP82M
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	1k pcs
Family Name	SVP
Introduction Date	October 02, 2002
ECCN	EAR99
Country of Origin	Japan
Halogen Free	Compliant
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian 16SVP82M CAD Model

Description

The Panasonic Electronic Components 16SVP82M is a polymer type capacitor with a voltage rating of 16V and a capacitance of 82μF.

Voltage Rating: 16V
Capacitance: 82μF
Tolerance: ±20%
ESR: 40 mOhm
Series: OS-CON SVP
Packaging: Reel
Applications: Various Electronic Circuits
Operating Temperature: -55°C ~ 105°C
Lifetime: 2000 hours @ 105°C
Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
Dimension: 0.315" Dia (8.00mm)
Ripple Current - Low Frequency: 106mA @ 120Hz
Ripple Current - High Frequency: 2.12A @ 100kHz
Halogen Free: Yes
Estimated EOL Date: 2026
