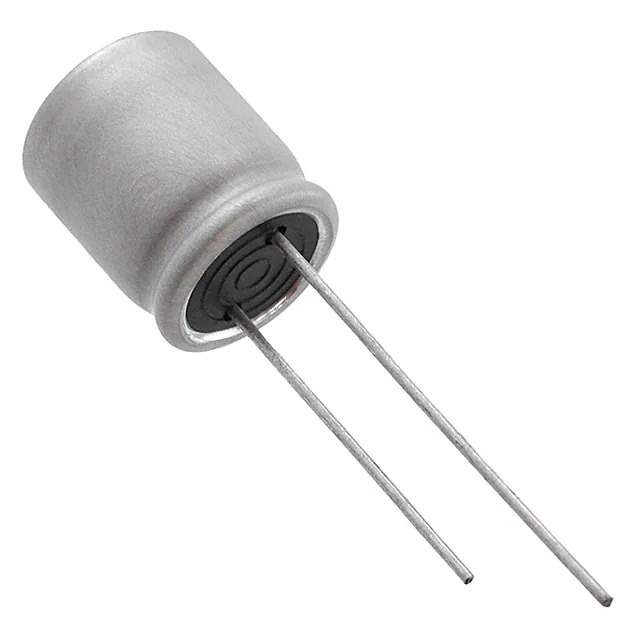

Same model may have multiple batches, images only for reference.

16SEPF1000M

Name: 16SEPF1000M
Brand: Panasonic
SKU: 844318
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	16SEPF1000M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 1000UF 20% 16V T/H / 1000 μF 16 V Aluminum - Polymer Capacitors Radial, Can 12mOhm 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic
Series	OS-CON™, SEPF
Package	Bulk
Product Status	Active
Type	Polymer
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	12mOhm
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Ripple Current @ Low Frequency	270 mA @ 120 Hz
Ripple Current @ High Frequency	5.4 A @ 100 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	16SEPF
Standard Package	200 pcs
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	844318-16SEPF1000M
Ultra Librarian 3D Model	Ultra Librarian 16SEPF1000M CAD Model

Description

The 844318-16SEPF1000M is a polymer capacitor from the OS-CON™ SEPF series.

Manufacturer: Panasonic
Product Name: 844318-16SEPF1000M
Series: OS-CON™ SEPF
Application: General-Purpose
Capacitance: 1000μF
Voltage: 16V
ESR: 12mOhm
Lifetime: 5000 hours @ 105°C
Package: Radial, Can
Diameter: 0.394 inches (10.00mm)
Mounting: Through-Hole
Operating Temperature: -55°C to 105°C
