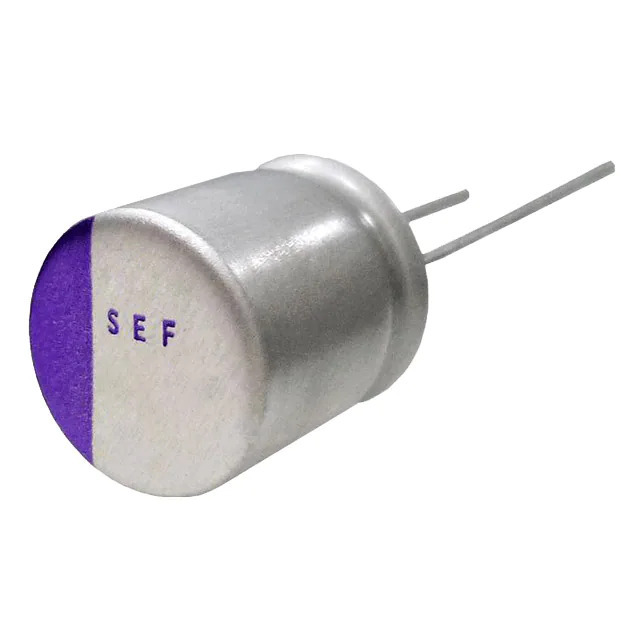

16SEF560M

Name: 16SEF560M
Brand: Panasonic
SKU: 1359570
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	16SEF560M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 560UF 20% 16V T/H / 560 µF 16 V Aluminum - Polymer Capacitors Radial, Can 14mOhm 1000 Hrs @ 125°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SEF
Package	Bulk
Product Status	Active
Type	Polymer
Capacitance	560 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	14mOhm
Lifetime @ Temp.	1000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	78 mA @ 120 Hz
Ripple Current @ High Frequency	1.56 A @ 100 kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	16SEF
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1359570-16SEF560M
Ultra Librarian 3D Model	Ultra Librarian 16SEF560M CAD Model

Description

The Panasonic Electronic Components OS-CON™, SEF series polymer capacitor is a high-quality component suitable for a wide range of applications.

Capacitance: 560µF
Voltage - Rated: 16V
Type: Polymer
ESR (Equivalent Series Resistance): 14mOhm
Lifetime @ Temp.: 1000 Hrs @ 125°C
Termination: Radial, Can
Mounting Type: Through Hole
Package / Case: Radial, Can
Ripple Current @ Low Frequency: 78mA @ 120Hz
Ripple Current @ High Frequency: 1.56A @ 100kHz
Tolerance: ±20%
Operating Temperature: -55°C ~ 125°C
