Same model may have multiple batches, images only for reference.

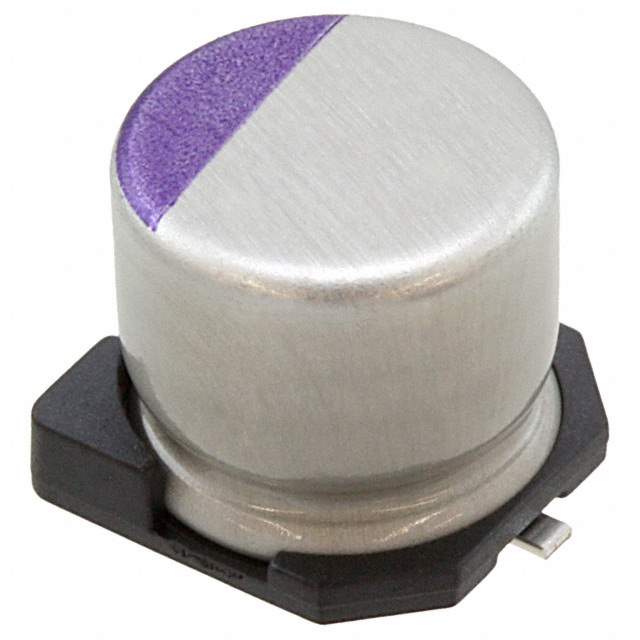

10SVP47M Real Image
Same model may have multiple batches, images only for reference.

10SVP47M

Part No 10SVP47M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 47UF 20% 10V SMD / 47 µF 10 V Aluminum - Polymer Capacitors Radial, Can - SMD 50mOhm 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Type Polymer
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) 50mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 81 mA @ 120 Hz
Ripple Current @ High Frequency 1.62 A @ 100 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.236" (6.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number 10SVP
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number P16436DKR,P16436TR,P16436CT
Standard Package 1,000
Win Source Part Number 1330381-10SVP47M
Ultra Librarian 3D Model Ultra Librarian 10SVP47M CAD Model

Description

The Panasonic Electronic Components 10SVP47M is a polymer aluminum capacitor designed for general purpose applications.

  • Capacitance: 47 µF
  • Voltage Rating: 10V
  • Tolerance: ±20%
  • ESR: 50mOhm
  • Package: Radial, Can - SMD
  • Maximum Seated Height: 0.236" (6.00mm)
  • Ripple Current: 81 mA @ 120 Hz and 1.62 A @ 100 kHz
  • Standard Package: 1,000
