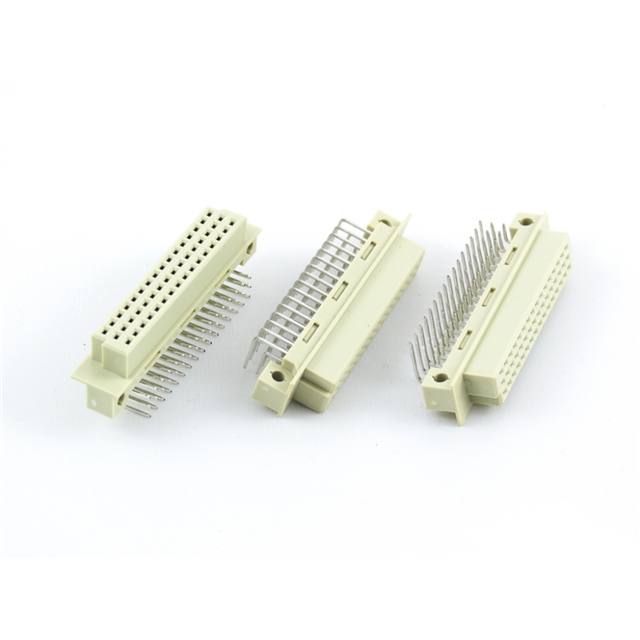

The 1381228-9001-18481C00L1A is a DIN 41612 backplane connector from the 9001 series. It has 48 positions and a pitch of 0.100" (2.54mm). The connector features board lock and is a receptacle with female sockets. All positions are loaded, and it has 3 rows. The termination style is solder, and the contact finish is gold with a flash finish thickness. The connector is made of polybutylene terephthalate (PBT) insulation material with a UL94 V-0 flammability rating. It has a right-angle, through-hole mounting type and can operate in a temperature range of -55°C to 125°C. The 1381228-9001-18481C00L1A is a reliable and durable connector that provides secure and efficient connections for electronic devices.

• Series: 9001, DIN 41612
• Positions: 48
• Pitch: 0.100" (2.54mm)
• Features: Board Lock
• Connector Type: Receptacle with Female Sockets
• Positions Loaded: All
• Rows: 3
• Termination: Solder
• Contact Finish: Gold
• Finish Thickness: Flash
• Insulation Material: Polybutylene Terephthalate (PBT)
• Flammability Rating: UL94 V-0
• Mounting: Right-Angle, Through-Hole
• Temperature Range: -55°C to 125°C
• Manufacturer: HARTING
