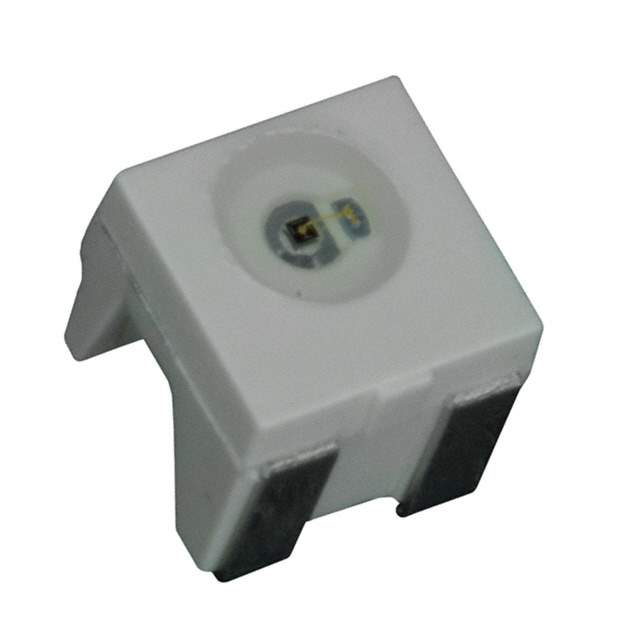

LS A67B-S2U1-1-Z Real Image
Same model may have multiple batches, images only for reference.

LS A67B-S2U1-1-Z

Part No LS A67B-S2U1-1-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optics - LEDs - Light Pipes
Description LED Uni-Color Red 645nm 2-Pin SMT T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Termination SMD/SMT
Color Red
Dominant Wavelength 633 nm
Forward Current 40 mA
Forward Voltage 2.1 V
Height 4 mm
Illumination Color Red
Length 4 mm
Lens Color Colorless
Lens Style Circular, Colorless, Diffused
Lens Transparency Clear
Luminous Flux 1.2 lm
Luminous Intensity 392 mcd
Maximum Operating Temperature 100 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of LEDs 1
Number of Pins 2
RoHS Compliant
Test Current 30 mA
Viewing Angle 120 °
Width 3.6 mm
Win Source Part Number 1071078-LS A67B-S2U1-1-Z
Categories Optics - LEDs - Light Pipes
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LS A67B-S2U1-1-Z CAD Model

Description

The OSRAM Opto Semiconductors Inc. 1071078-LS A67B-S2U1-1-Z is a red LED light pipe.

  • Packaging: Digi-Reel
  • RoHS Compliant: Yes
  • Length: 4mm
  • Height: 4mm
  • Luminous Intensity: 392mcd
  • Viewing Angle: 120 degrees
  • Width: 3.6mm
  • Luminous Flux: 1.2lm
  • Category: Optics-LEDs-Light Pipes
  • Lens Style: Circular, colorless, diffused
  • Supply and Demand Status: Shortage
  • Maximum Temperature: 100 degrees Celsius
  • Minimum Temperature: -40 degrees Celsius
  • Dominant Wavelength: 633nm
