Same model may have multiple batches, images only for reference.

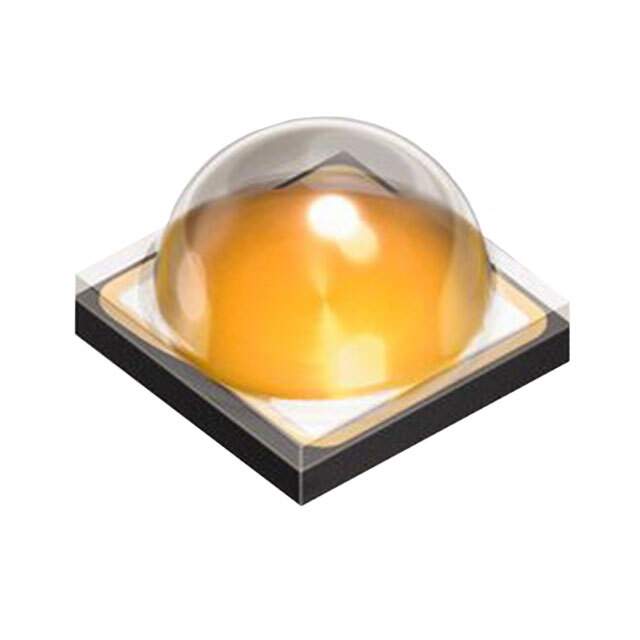

GW CSSRM2.CM-M3M5-XX57-1 Real Image
Same model may have multiple batches, images only for reference.

GW CSSRM2.CM-M3M5-XX57-1

Part No GW CSSRM2.CM-M3M5-XX57-1
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optics - LEDs - Light Pipes
Description LED Uni-Color 3000K 2-Pin CSMD EP T/R
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Color White
Height 2 mm
Length 3 mm
Luminous Flux 235 lm
Luminous Intensity 78.5 cd
Maximum Operating Temperature 125 °C
Min Operating Temperature -40 °C
Schedule B 8541402000
Viewing Angle 120 °
Width 3 mm
Win Source Part Number 1061396-GW CSSRM2.CM-M3M5-XX57-1
Categories Optics - LEDs - Light Pipes
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian GW CSSRM2.CM-M3M5-XX57-1 CAD Model

Description

The OSRAM Opto Semiconductors Inc. 1061396-GW CSSRM2.CM-M3M5-XX57-1 is a white LED that has a luminous intensity of 78.5 cd and a viewing angle of 120 degrees.

  • Luminous Intensity: 78.5 cd
  • Viewing Angle: 120 degrees
  • Height: 2 mm
  • Width: 3 mm
  • Length: 3 mm
  • Luminous Flux: 235 lm
  • Category: optics - LEDs - light pipes
  • Maximum Operating Temperature: 125 degrees Celsius
  • Minimum Operating Temperature: -40 degrees Celsius
  • Manufacturer: OSRAM Opto Semiconductors Inc.
  • Win Source Part Number: 1061396-GW CSSRM2.CM-M3M5-XX57-1
