Same model may have multiple batches, images only for reference.

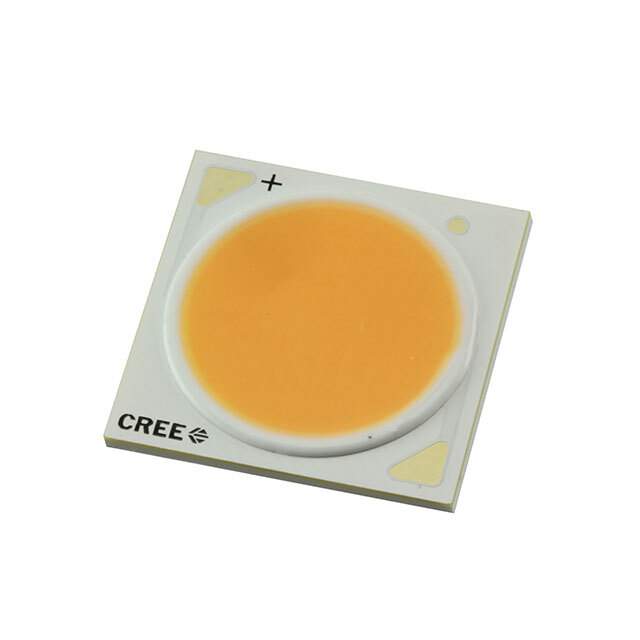

CXA1507-0000-000N00F40E7 Real Image
Same model may have multiple batches, images only for reference.

CXA1507-0000-000N00F40E7

Part No CXA1507-0000-000N00F40E7
Manufacturer CreeLED, Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA1507 WARM WHT SQUARE / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Square
Datasheet
CXA1507-0000-000N00F40E7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr CreeLED, Inc.
Series XLamp® CXA1507
Package Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K
Configuration Square
Luminous Flux @ Current/Temperature 755lm (730lm ~ 780lm)
Current - Test 200mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 37V
Lumens/Watt @ Current - Test 102 lm/W
Current - Max 375mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 15.85mm L x 15.85mm W
Height 1.70mm
Light Emitting Surface (LES) 8.90mm Dia
Lens Type Flat
Base Product Number CXA1507
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names CXA15070000000N00F40E7
Standard Package 100
Win Source Part Number 983426-CXA1507-0000-000N00F40E7
Ultra Librarian 3D Model Ultra Librarian CXA1507-0000-000N00F40E7 CAD Model

Description

The CreeLED, Inc. CXA1507-0000-000N00F40E7 is a chip-on-board (COB) type LED with a square configuration.

  • Type: Chip-on-board (COB)
  • Configuration: Square
  • Colors: White and warm
  • Viewing Angle: 115°
  • Voltage Forward (Vf): 37V
  • Maximum Current: 375mA
  • Lens Type: Flat
  • Height: 1.70mm
  • CCT: 3000K
  • CRI: 80
  • Luminous Flux: 755lm @ a current of 200mA and a temperature of 85°C
  • Category: Optoelectronics
  • Standard Package: 100
  • HTSUS Code: 8541.41.0000
