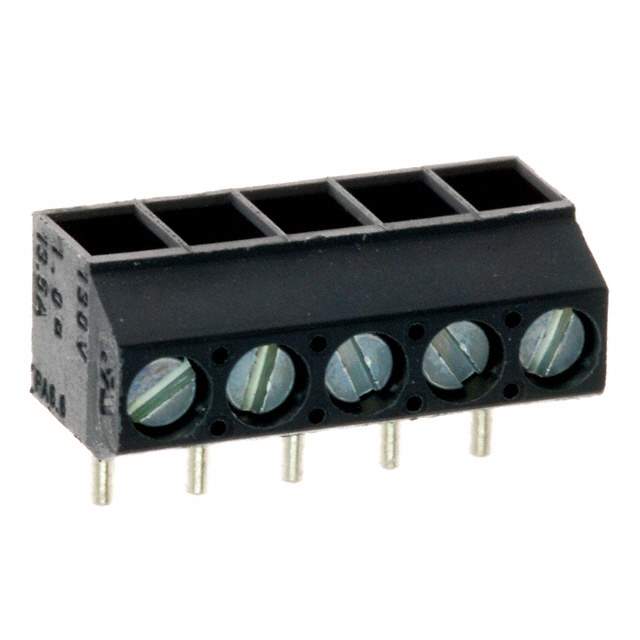

ED550/5DS Real Image
Same model may have multiple batches, images only for reference.

ED550/5DS

Part No ED550/5DS
Manufacturer On Shore Technology Inc.
Catalog Terminal Blocks
Description TERM BLK 5P TOP ENTRY 3.5MM PCB / 5 Position Wire to Board Terminal Block Vertical with Board 0.138" (3.50mm) Through Hole
Datasheet
ED550/5DS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Wire to Board
Manufacturer On Shore Technology Inc.
Packaging Bulk
Number of Levels 1
Positions Per Level 5
Pitch 0.138" (3.50mm)
Mating Orientation Vertical with Board
Current 6 A
Voltage 125 V
Wire Gauge 16-28 AWG
Mounting Through Hole
Wire Termination Screw - Leaf Spring, Wire Guard
Color Gray
Temperature Range - Operating -30°C ~ 105°C
Housing Material Polyamide (PA), Nylon
Contact Material - Plating Brass
Clamp Material - Plating Steel, Stainless
Torque - Screw 0.4 Nm (3.5 Lb-In)
Screw Thread M2
Base Product Number ED550
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number ED1504-NDR,Q3220324,ED1504,ED5505DS,ED550/5
Standard Package 250
Win Source Part Number 1332927-ED550/5DS
Ultra Librarian 3D Model Ultra Librarian ED550/5DS CAD Model

Description

The On Shore Technology Inc. ED550/5DS is a terminal block connector that is widely used for wire to board connections.

  • Pitch: 0.138 inches (3.5mm)
  • Wire Gauge: Accommodate wire gauge sizes ranging from 16-28 AWG.
  • Housing Material: High-quality polyamide (PA) nylon housing material
  • Voltage Rating: 125V
  • Current Rating: 6A
  • Wire Termination: Screw wire termination mechanism with leaf spring and wire guard
  • Mounting: Through-hole mounting
  • Mating Orientation: Vertical with the board
  • Contact Material: Brass
  • Clamp Material: Steel and stainless steel
  • Screw Thread: M2
  • Torque Screw: 0.4 Nm (3.5 Lb-In)
  • Temperature Range: -30°C to 105°C
  • Compliance: ROHS3 compliant.
