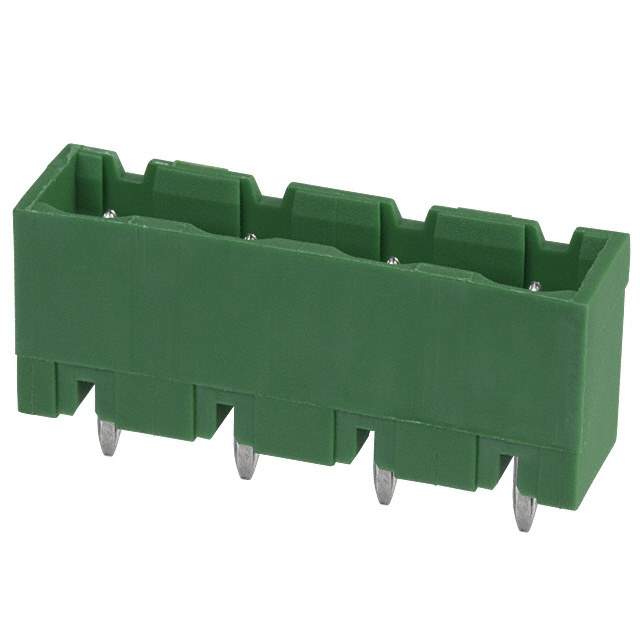

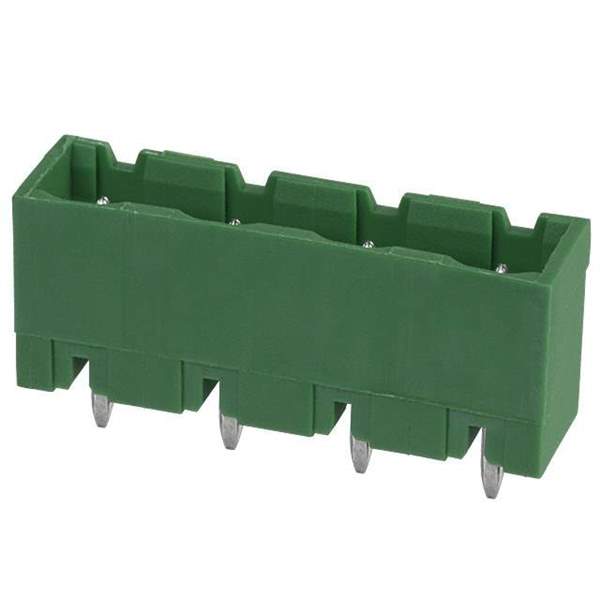

The EDSTLZ965/4 is a terminal block manufactured by On Shore Technology Inc. This component is designed to provide a secure and organized method for connecting multiple wires, ensuring reliable electrical connections in a variety of applications. Terminal blocks like the EDSTLZ965/4 simplify wiring processes, reduce the risk of loose connections, and facilitate easier maintenance and troubleshooting.

Applications

• Control panels
• Power supplies
• Industrial machinery
• HVAC systems
• Telecommunication equipment
• Lighting systems

Features

• 4-Pole Configuration: Offers four independent connection points for wires.
• Screw Clamp Design: Provides a secure and reliable connection by clamping wires down with screws.
• Durable Construction: Made from high-quality insulating materials to ensure long-lasting performance and electrical safety.
• Compact Size: Space-saving design allows for efficient use of space within enclosures.
• Easy Installation: Simple and straightforward installation process.
• High Current Capacity: Designed to handle significant current loads, depending on the specific model and rating.

Benefits

• Secure Wire Connections: Minimizes the risk of loose connections and electrical failures.
• Organized Wiring: Provides a structured and neat wiring solution, simplifying troubleshooting.
• Improved Safety: Reduces the risk of electrical hazards by ensuring secure and insulated connections.
• Long-Term Reliability: Durable construction ensures long-lasting performance in various operating conditions.
• Time-Saving Installation: Easy installation simplifies the wiring process.
• Versatile Application: Suitable for a wide range of electrical and electronic applications.

Typically, the EDSTLZ965/4 terminal block is constructed with a flame-retardant plastic housing, such as polyamide (PA), and features tin-plated brass or steel screw terminals. The exact voltage and current ratings, wire gauge compatibility, and torque specifications for the screws should be verified from the manufacturer's datasheet to ensure safe and optimal performance. These specifications are critical for proper installation and reliable operation within the intended electrical system. The compact design of the EDSTLZ965/4 makes it well-suited for applications where space is limited, while its robust construction ensures durability in industrial environments.
