Same model may have multiple batches, images only for reference.

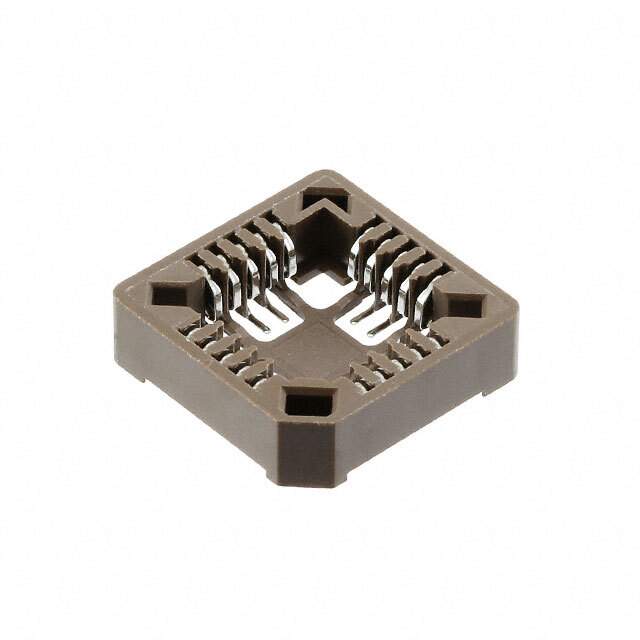

ED020PLCZ-SM-N Real Image
Same model may have multiple batches, images only for reference.

ED020PLCZ-SM-N

Part No ED020PLCZ-SM-N
Manufacturer On Shore Technology Inc.
Catalog Sockets for ICs, Transistors
Description CONN SOCKET PLCC 20POS SMD
Datasheet
ED020PLCZ-SM-N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer On Shore Technology Inc.
Series ED
Packaging Tube
Type PLCC
Number of Positions or Pins (Grid) 20 (2 x 10)
Pitch - Mating 0.050" (1.27mm)
Contact Material - Mating Phosphor Bronze
Mounting SMD
Features Closed Frame
Termination Solder
Pitch - Post 0.050" (1.27mm)
Contact Material - Post Phosphor Bronze
Housing Material Polyphenylene Sulfide (PPS)
Operating Temperature Range -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating 1A
Contact Resistance 30 mOhm
Win Source Part Number 772298-ED020PLCZ-SM-N
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ED020PLCZ-SM-N CAD Model

Description

The ED020PLCZ-SM-N is a PLCC connector from On Shore Technology Inc..

  • Series: ED
  • Packaging: Tube
  • Connector Type: Closed Frame
  • Termination: Solder
  • Current Rating: 1A
  • Housing Material: Polyphenylene Sulfide (PPS)
  • Popularity: Medium
  • Supply and Demand: Limited
  • Positions/Pins: 20 (Grid)
  • Pitch - Mating: 0.050" (1.27mm)
  • Contact Material (Mating/Post): Phosphor Bronze
  • Pitch - Post: 0.050" (1.27mm)
  • Contact Resistance: 30 mOhm
