Products specifications

Category Circuit Protection>TVS - Diodes
Mfr onsemi
Package Tape & Reel (TR)
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 8V
Voltage - Breakdown (Min) 8.89V
Voltage - Clamping (Max) @ Ipp 13.6V
Current - Peak Pulse (10/1000µs) 36.7A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Mounting Type Through Hole

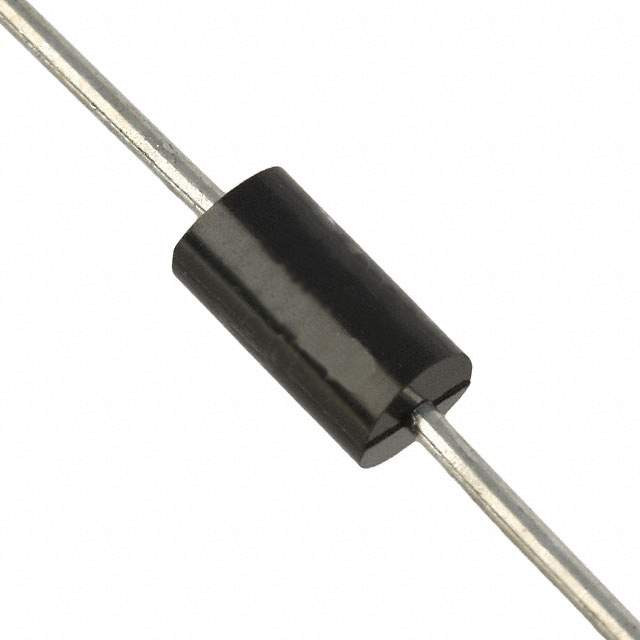

Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-15
Base Product Number SA8V0
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1298723-SA8V0A
Ultra Librarian 3D Model Ultra Librarian SA8V0A CAD Model

Description

The SA8V0A from ON Semiconductor is a high-quality Transient Voltage Suppressor designed to protect sensitive electronics from voltage spikes and transients induced by inductive load switching and lightning. This robust TVS diode is ideal for safeguarding voltage-sensitive components which require high reliability and high surge capability.

Key Features

  • Peak Pulse Power: The SA8V0A offers excellent surge suppression capabilities with its 500W peak pulse power dissipation with a 10/1000μs waveform.
  • Stand-Off Voltage: It features a stand-off voltage of 8.0V, providing a reliable protective barrier for components that operate within this voltage range.
  • Low Leakage Current: With its low leakage current, it ensures minimal power loss and is suitable for low-power applications.
  • Fast Response Time: The device's fast response time is critical for protecting against fast-rising transients, such as ESD or lightning strikes.
  • Reverse Stand-Off Voltage: The reverse stand-off voltage is designed to minimize the potential for breakdown and device failure.

Applications

The SA8V0A is versatile and can be used in a variety of applications, including:

  • Consumer electronics such as smartphones, tablets, and laptops
  • Industrial systems where surge protection is crucial
  • Networking devices like routers and switches
  • Automotive electronics that require robust protection against transients
  • Power supply units and voltage regulation modules

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the SA8V0A is no exception. It is manufactured to the highest standards to ensure consistent performance and reliability across a range of conditions. The device is also RoHS compliant, indicating a reduced environmental impact by avoiding the use of certain hazardous substances.

Summary

The SA8V0A TVS from ON Semiconductor is a compact, high-performance solution for protecting sensitive electronic circuits against voltage transients. Its combination of high surge capability, fast response time, and low leakage current makes it an excellent choice for a wide array of applications. When it comes to safeguarding electronics from unpredictable voltage spikes, the SA8V0A is a trusted component that engineers and designers can rely on.
