ON Semiconductor PACDN1408 Product Overview

The ON Semiconductor PACDN1408 is a high-performance, low-capacitance TVS (Transient Voltage Suppressor) diode array designed to provide superior protection for sensitive electronic components against electrostatic discharge (ESD) and other voltage-induced transient events. This robust component is an ideal solution for safeguarding high-speed data lines and signal interfaces in a wide range of applications, including mobile devices, computers, and telecommunications equipment.

Key Features

• ESD Protection: The PACDN1408 offers excellent ESD protection, meeting IEC61000-4-2 Level 4 standards, and can withstand ESD strikes of ±15kV (air discharge) and ±8kV (contact discharge).
• Low Capacitance: With a low loading capacitance per I/O, this device ensures signal integrity for high-speed data lines without compromising the performance of the protected circuit.
• Low Leakage Current: The device features an ultra-low leakage current, making it suitable for battery-powered applications where power conservation is critical.
• Multi-Line Protection: It is designed to protect multiple lines, offering a compact and efficient solution for space-constrained applications.
• Robust Surge Protection: The PACDN1408 can also handle surge currents, offering reliable performance under harsh electrical transient conditions.

Applications

The PACDN1408 is versatile and can be used in a variety of applications, including:

• USB interfaces
• HDMI and DisplayPort interfaces
• LVDS interfaces
• Ethernet 10/100/1000 Base T
• Wireless communications systems
• Portable electronics

Package and Quality

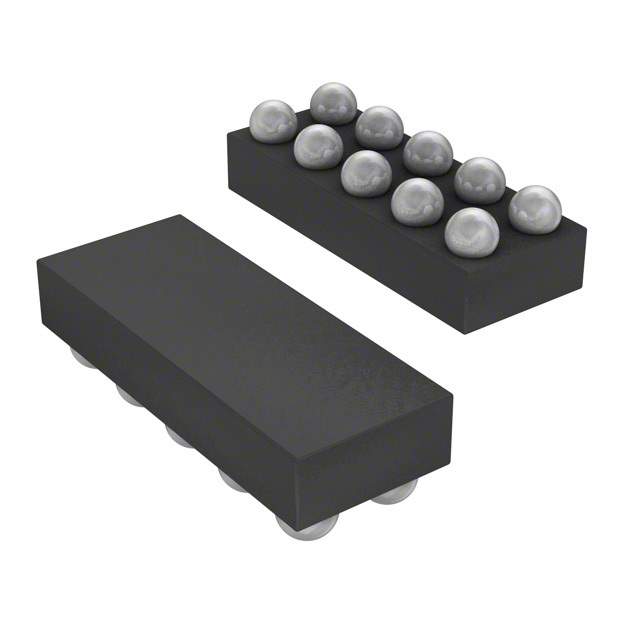

The ON Semiconductor PACDN1408 is offered in a space-saving, lead-free package that is RoHS compliant, reflecting the company's commitment to environmental sustainability. Additionally, ON Semiconductor ensures that their products meet rigorous quality and performance standards, providing reliability and peace of mind for designers and manufacturers.
