ON Semiconductor NUF8402MNT4G Overview

The NUF8402MNT4G from ON Semiconductor is a state-of-the-art EMI filter array with ESD protection, designed to provide a comprehensive solution for signal integrity and protection in various electronic applications. This compact component is especially suited for high-speed data lines where signal integrity and protection against electrostatic discharge are crucial.

Key Features

• Integrated EMI Filtering: The NUF8402MNT4G incorporates eight channels of low-pass filter arrays, which significantly reduce EMI/RFI emissions on data lines without adversely affecting signal integrity. This makes it ideal for maintaining signal clarity in environments with potential electromagnetic interference.
• ESD Protection: Each channel is capable of withstanding ESD strikes, adhering to the IEC61000-4-2 Level 4 standard. This robust protection safeguards sensitive circuitry from electrostatic discharges that can occur during handling or operation.

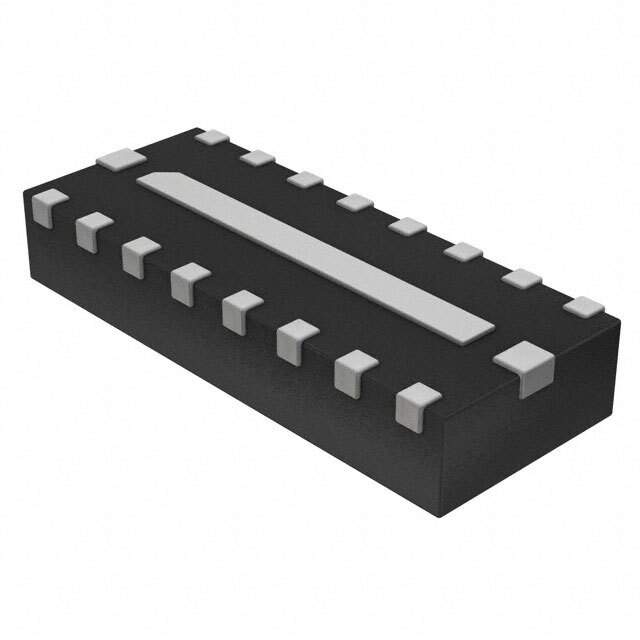

• Compact Size: The device comes in a micro-sized leadless package (UDFN), measuring only 3.0mm x 1.5mm. Its small footprint makes it a perfect fit for space-constrained applications, allowing designers to maximize board space without compromising performance.
• Low Pass Filter Cutoff Frequency: The NUF8402MNT4G has a cutoff frequency that is suitable for high-speed signal requirements, ensuring that it can be used with a wide range of data rates while maintaining signal integrity.
• Bidirectional Interface: The filter array can be used with bidirectional signal lines, providing both EMI filtering and ESD protection regardless of the signal direction.

Applications

The versatility of the NUF8402MNT4G makes it an excellent choice for a wide array of applications. It is particularly well-suited for:

• Mobile Devices
• Portable Electronics
• Data Line Applications
• USB Interfaces
• Video and Audio Interfaces
• High-Speed Data Ports

ON Semiconductor's NUF8402MNT4G is a powerful solution that combines EMI filtering and ESD protection in one package, ensuring both signal integrity and robust protection for your electronic designs. Its compact size, high performance, and versatility make it an essential component for modern electronic devices where space and reliability are of paramount importance.
