ON Semiconductor NUF4001MUT2G - EMI Filter with ESD Protection

The NUF4001MUT2G from ON Semiconductor is a state-of-the-art integrated EMI filtering and ESD protection device designed to provide a high-performance solution for electronic products requiring signal integrity and robust protection against electrostatic discharge. This compact component is ideal for applications such as mobile phones, PDAs, notebooks, and other portable electronic devices where space is at a premium and protection from external disturbances is crucial.

Key Features

• Integrated EMI Filtering: The NUF4001MUT2G incorporates pi-style EMI filters (LC filters) to suppress high-frequency EMI/RFI electronic noise on data lines or interfaces.
• ESD Protection: It offers excellent ESD protection, ensuring the device meets IEC61000-4-2 Level 4 standards, which provides protection for contact discharge up to ±15kV and air discharge up to ±30kV.
• Low Pass Filter: The integrated low pass filter has a cutoff frequency of 200MHz, which is suitable for a wide range of applications including high-speed USB 2.0.
• Low Capacitance: With a typical signal line capacitance of just 10pF, the NUF4001MUT2G minimizes signal attenuation, thus maintaining signal integrity on high-speed data lines.

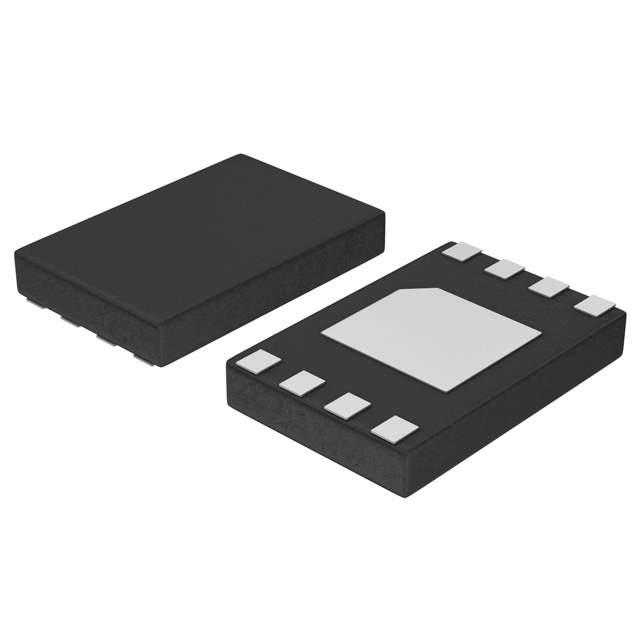

• Compact Package: The device comes in a space-saving µDFN package, making it an ideal choice for portable applications where PCB real estate is limited.
• Lead-Free and RoHS Compliant: The NUF4001MUT2G is completely lead-free and complies with current RoHS standards, making it suitable for use in environmentally-sensitive applications.

Applications

• Mobile Phones
• PDAs and Personal Organizers
• Notebook and Desktop Computers
• Portable Media Players
• Digital Cameras
• GPS Units

The NUF4001MUT2G is manufactured by ON Semiconductor, a trusted leader in semiconductor solutions. By integrating both EMI filtering and ESD protection into a single device, ON Semiconductor addresses the growing need for compact, efficient, and reliable circuit protection solutions. The NUF4001MUT2G is designed to enhance the durability and performance of sensitive electronic components in today's high-speed digital environments, ensuring that your electronic devices operate smoothly and without interference.
