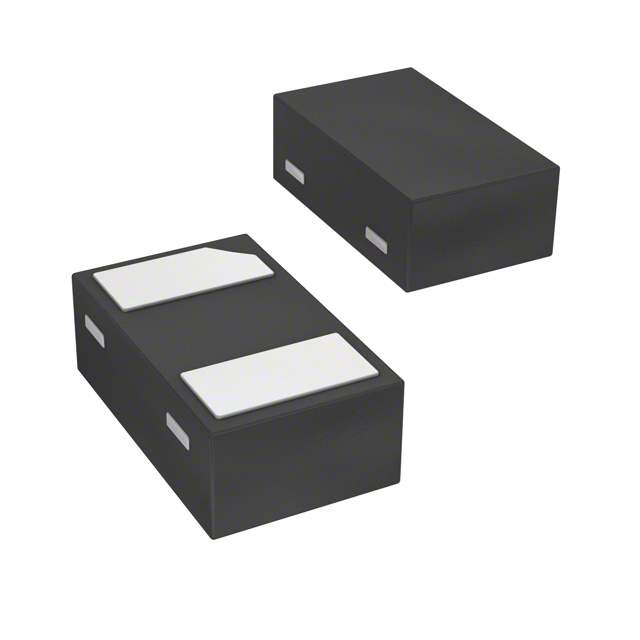

NSR0240MXT5G

Part No NSR0240MXT5G
Manufacturer ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 2X2DFN / Diode Schottky 40 V 200mA Surface Mount 2-X2DFN (1x0.6)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr onsemi
Package Tape & Reel (TR)
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 600 mV @ 200 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5 µA @ 40 V
Capacitance @ Vr, F 7pF @ 0V, 1MHz
Mounting SMD (SMT)
Package / Case 2-XDFN
Supplier Device Package 2-X2DFN (1x0.6)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number NSR024
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names 2156-NSR0240MXT5G-488
Standard Package 8,000
Win Source Part Number 1115156-NSR0240MXT5G
Ultra Librarian 3D Model Ultra Librarian NSR0240MXT5G CAD Model

Description

The NSR0240MXT5G from ON Semiconductor is a high-performance Schottky diode, designed to offer efficient power management solutions for a wide range of applications. This diode is part of ON Semiconductor's extensive portfolio of energy-efficient devices, reflecting the company's commitment to providing innovative, environmentally friendly solutions to the electronics industry.

Key Features

  • Low Forward Voltage Drop: The diode features a low forward voltage drop, which reduces power loss and improves efficiency, making it ideal for high-efficiency power supply designs.
  • High Current Capability: With a continuous forward current rating, this diode can handle significant current levels, suitable for various power applications.
  • Fast Switching Speed: The NSR0240MXT5G is designed for fast switching, enabling quick response times in circuits where switching speed is critical.
  • Low Leakage Current: The device has a very low leakage current, which minimizes power loss when the diode is in the reverse-biased state, contributing to the overall efficiency of the application.
  • Small Package Size: Encased in a compact SOD-923 package, the diode saves valuable board space and is suitable for high-density circuit designs.

Applications

The NSR0240MXT5G is versatile and can be used in a variety of applications, including:

  • Power management modules
  • DC-DC converters
  • Battery charging circuits
  • Reverse voltage protection
  • Load switch applications
  • Portable electronic devices

Environmental and Quality Certifications

ON Semiconductor ensures that its products meet the highest standards for quality and environmental responsibility. The NSR0240MXT5G complies with various industry certifications, ensuring reliability and performance in even the most demanding conditions.

Conclusion

In conclusion, the NSR0240MXT5G Schottky diode from ON Semiconductor is an excellent choice for designers looking to enhance power efficiency in their electronic designs. Its low forward voltage drop, high current capability, fast switching speed, and low leakage current make it a robust component for a broad range of applications. Packaged in a tiny footprint, it is also a space-saving solution for modern, compact electronic devices.
