ON Semiconductor NSR0240HT1G Overview

The NSR0240HT1G from ON Semiconductor is a high-performance Schottky Barrier Diode designed to offer efficient energy management within compact electronic systems. This diode is well-suited for applications that demand high efficiency and reliability, such as power supply circuits, converters, and high-frequency systems.

Key Features

• Low Forward Voltage Drop: The NSR0240HT1G boasts a low forward voltage drop, which enhances system efficiency by minimizing power losses during diode conduction.
• Fast Switching Speed: With its fast switching capabilities, this diode ensures quick response times in circuits, making it ideal for high-frequency applications.
• Power Dissipation: Rated at 200 mW, this device can dissipate a moderate amount of power, making it suitable for a range of electronic applications.
• High Current Capability: The diode can handle a continuous forward current of 240 mA, which allows it to be used in circuits with higher current demands.
• Low Leakage Current: It has a low reverse leakage current, contributing to the overall energy efficiency of the system by reducing standby power consumption.

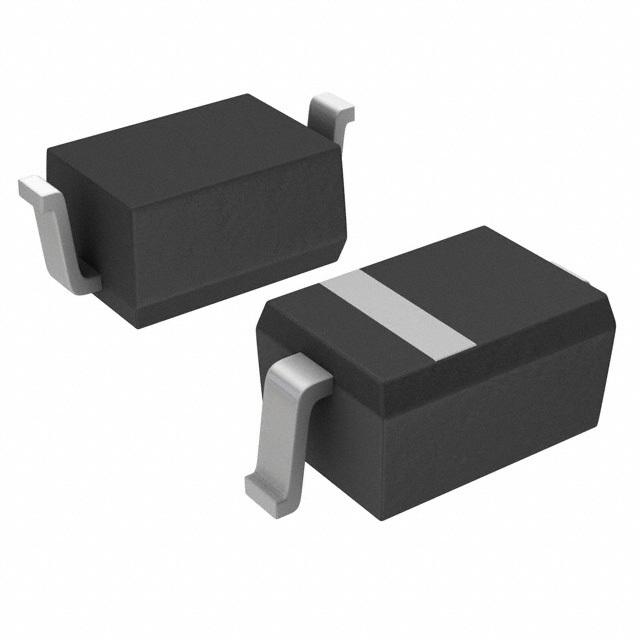

• Small Package Size: Encased in an SOD-323 package, the NSR0240HT1G is designed for space-constrained applications, providing high performance in a compact footprint.
• Temperature Range: This diode operates within a junction temperature range of -55°C to +125°C, ensuring stable performance across various environmental conditions.
• RoHS Compliant: The NSR0240HT1G meets RoHS standards, ensuring compliance with environmental regulations by avoiding the use of hazardous substances.

Applications

The NSR0240HT1G is versatile and can be integrated into various electronic systems, including:

• DC-DC converters
• Power management devices
• Reverse battery protection circuits
• LED lighting
• Portable electronic devices
• Automotive applications

With its robust design and efficient operation, the ON Semiconductor NSR0240HT1G Schottky Barrier Diode is an excellent choice for engineers and designers looking to enhance the performance and reliability of their electronic products.
