ON Semiconductor NLX2G14AMX1TCG Overview

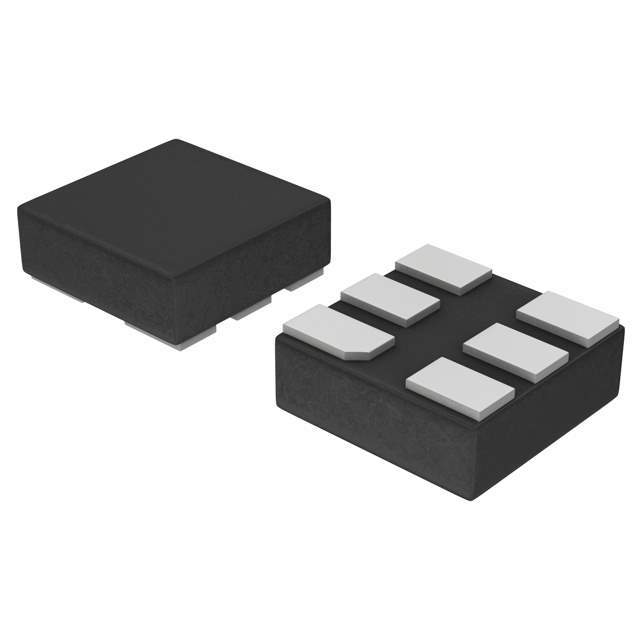

The NLX2G14AMX1TCG is a high-performance, dual non-inverting Schmitt-trigger buffer designed by ON Semiconductor. This integrated circuit (IC) is part of ON Semiconductor's advanced CMOS logic family and is specifically engineered to provide a robust and reliable solution for digital signal conditioning with hysteresis. The device is housed in a compact, lead-free, 6-pin MicroPak™ package, making it suitable for space-constrained applications.

Key Features

• Advanced High-Speed CMOS Technology: The NLX2G14AMX1TCG is built using ON Semiconductor's advanced CMOS process, ensuring high-speed operation while maintaining low power consumption.
• Dual Non-Inverting Schmitt Trigger: This IC contains two independent non-inverting Schmitt trigger buffers, providing excellent noise immunity and signal conditioning capabilities for digital circuits.
• Wide Operating Voltage Range: It operates over a wide voltage range from 1.65V to 5.5V, catering to a variety of logic level requirements and making it suitable for interfacing with both low-voltage and standard logic levels.
• Low Power Consumption: The device is designed for low power consumption, making it ideal for battery-operated and power-sensitive applications.
• Hysteresis Characteristics: The Schmitt trigger inputs incorporate hysteresis, which enhances noise immunity and allows the device to transform slowly changing input signals into sharply defined jitter-free output signals.

Applications

The NLX2G14AMX1TCG is versatile and can be used in a myriad of applications, including:

• Wave shaping and noise filtering
• Signal gating
• Line drivers
• Logic level translation
• Glitch-free power-up / power-down circuits

Environmental and Quality Certifications

ON Semiconductor is committed to environmental stewardship and quality. The NLX2G14AMX1TCG adheres to stringent quality control standards and is compliant with RoHS (Restriction of Hazardous Substances) directives, ensuring both performance reliability and environmental responsibility.

Conclusion

In summary, the NLX2G14AMX1TCG from ON Semiconductor is a versatile, dual non-inverting Schmitt-trigger buffer that excels in applications requiring clean and stable digital signals. With its wide voltage range, low power consumption, and compact packaging, it is an excellent choice for designers looking for a reliable and efficient solution for their digital signal conditioning needs.
