ON Semiconductor's NLAS5223MNR2G: A High-Performance Analog Switch

The NLAS5223MNR2G is a cutting-edge analog switch product from ON Semiconductor, a leading supplier in the semiconductor industry. This device is designed to deliver high performance and reliability for a wide range of applications. The NLAS5223MNR2G is part of the low-voltage single-supply dual SPDT (Single Pole Double Throw) analog switch family, which is known for its versatility and efficiency.

Constructed with advanced silicon technology, the NLAS5223MNR2G boasts a low on-resistance of typically 0.5 ohms, which allows signals to pass through with minimal attenuation and power loss. This feature makes it an excellent choice for applications that require high signal integrity, such as audio, video, and data communications. Furthermore, the device operates over a broad voltage range from 1.65V to 4.3V, enabling it to support a variety of low-voltage applications.

The NLAS5223MNR2G is designed with a break-before-make switch configuration, which ensures that there is no momentary short circuit when switching between signals. This configuration is critical in preventing signal degradation and protecting the integrity of the data being transferred. Additionally, the device has a fast switching speed, which is essential for applications that require quick and seamless signal routing.

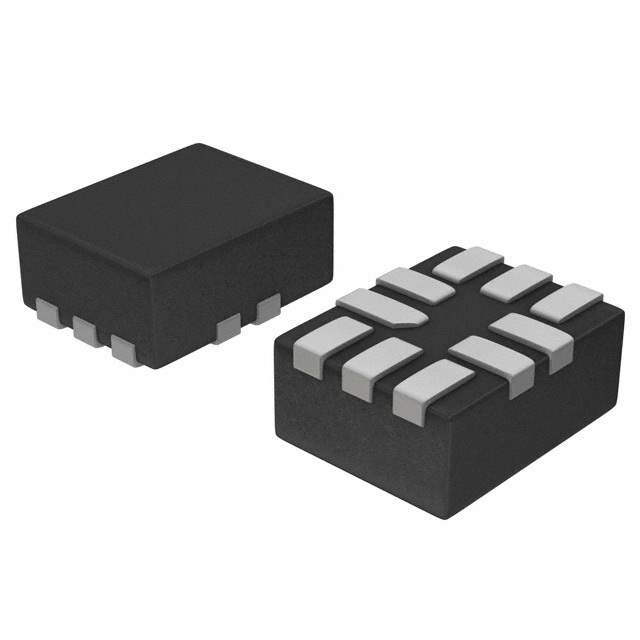

ON Semiconductor has packaged the NLAS5223MNR2G in a compact, space-saving micro QFN-12 package, which measures just 1.6mm x 1.6mm x 0.55mm. This ultra-small footprint allows for high-density board designs and is particularly beneficial for portable and space-constrained applications such as smartphones, tablets, and other handheld devices.

Moreover, the NLAS5223MNR2G features ESD (Electrostatic Discharge) protection circuitry, which safeguards the device against the damaging effects of static electricity. This protection is crucial for maintaining the longevity and reliability of the product, especially in environments where ESD events are common.

In summary, the NLAS5223MNR2G from ON Semiconductor is a highly efficient and reliable analog switch that offers low on-resistance, broad voltage range operation, fast switching speed, and a compact package. Its robust design and ESD protection make it an ideal choice for designers seeking performance and durability in their switching applications.
