The NL17SH14P5T5G is a high-performance, single Schmitt-trigger inverter designed by ON Semiconductor, a leading provider of semiconductor-based solutions. This device is part of ON Semiconductor's extensive range of logic products and is specifically engineered to address the demanding needs of today's advanced electronic circuits.

Key Features

• Logic Type: The NL17SH14P5T5G is a Schmitt-trigger inverter, which means it converts an input signal into its digital opposite with a Schmitt-trigger action that provides hysteresis. This feature helps to enhance noise immunity and transforms slowly changing input signals into sharply defined jitter-free output signals.

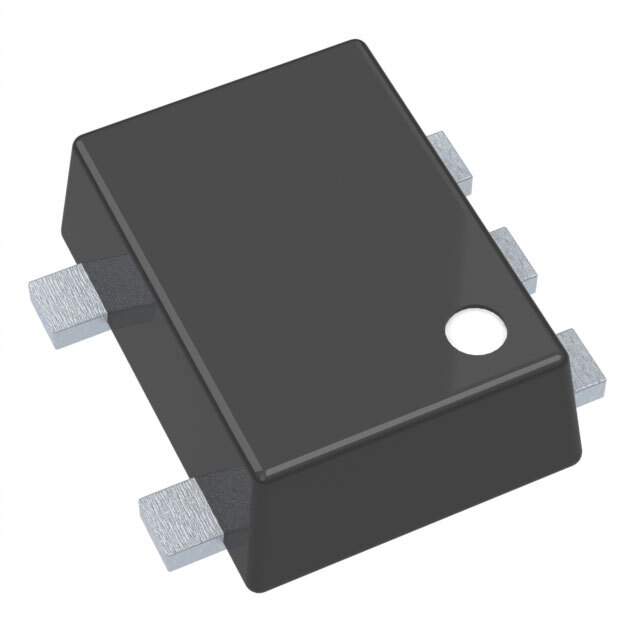

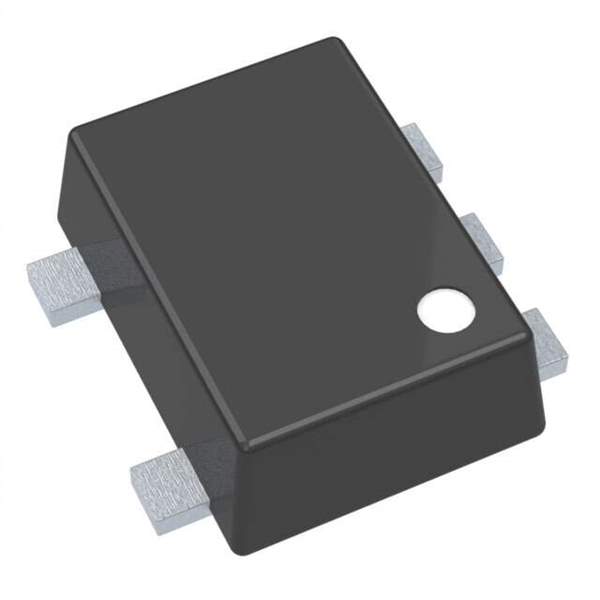

• Package: This device comes in a compact SC-74A, SOT-753 package, making it suitable for space-constrained applications.
• Operating Voltage: It operates over a wide voltage range of 2.0V to 5.5V, which allows for use in various systems from low-voltage portable devices to standard 5V logic circuits.
• High Speed: With a propagation delay time of typically 4.5ns at Vcc = 5V, NL17SH14P5T5G is designed for high-speed applications.
• Temperature Range: The device can operate over an industrial temperature range of -55°C to +125°C, ensuring reliability in extreme conditions.
• Power Consumption: Low power consumption makes this inverter ideal for battery-powered and energy-efficient designs.

Applications

The NL17SH14P5T5G is versatile and can be used in a variety of applications such as:

• Wave shaping and noise filtering circuits
• Signal processing
• Glitch-free clock circuits
• Portable electronics
• Logic circuitry

Quality and Reliability

ON Semiconductor is committed to the highest standards of quality and reliability. The NL17SH14P5T5G is manufactured under strict controls and tested to meet the rigorous standards of the semiconductor industry. Customers can be confident in the consistent performance and durability of this product.

Conclusion

The NL17SH14P5T5G from ON Semiconductor is a testament to the company's dedication to innovation and excellence in the field of logic devices. With its robust features and versatile applications, it stands out as a top choice for designers seeking a reliable and efficient Schmitt-trigger inverter.
