Products specifications Report Issue?

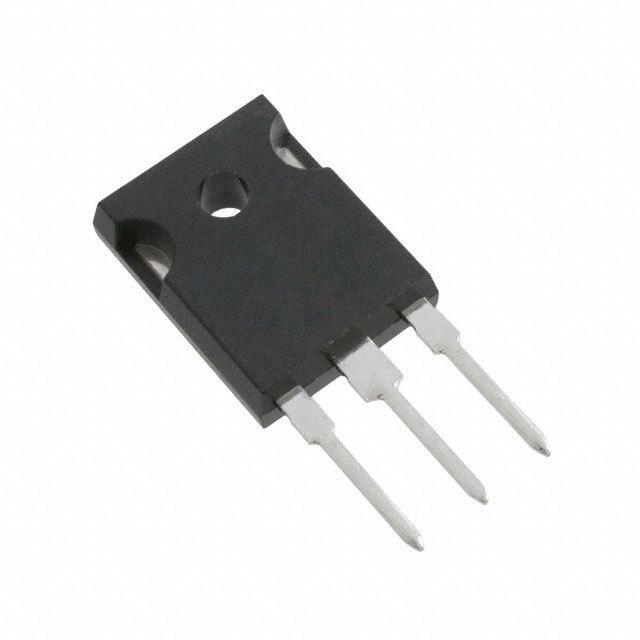

Manufacturer ON Semiconductor
Standard Package 30
Category Discrete Semiconductor Products
Family Diodes Rectifiers - Arrays
Series SWITCHMODE
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 400V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 1.25V @ 15A
Speed Fast Recovery =< 500ns > 200mA (Io)
Reverse Recovery Time (trr) 60ns
Current - Reverse Leakage @ Vr 10µA @ 400V
Mounting Style Through Hole
Package TO-247-3
Manufacturer Device Package TO-247
Catalog Diode Array
Win Source Part Number 089740-MUR3040WTG
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MUR3040WTG CAD Model

Description

The MUR3040WTG is a state-of-the-art ultrafast rectifier designed and manufactured by ON Semiconductor, a global leader in power and signal management solutions. This high-performance rectifier is engineered to cater to the demanding requirements of high-efficiency power supply systems and is ideal for use in a variety of applications such as switching power supplies, inverters, and as freewheeling diodes.

Key Features

  • Ultrafast Reverse Recovery Time: The MUR3040WTG boasts an impressive reverse recovery time, which greatly enhances the overall efficiency of power circuits by minimizing energy loss during switching transitions.
  • High Surge Capability: With its robust surge handling capacity, this rectifier can withstand high surge currents, making it highly reliable in applications subject to frequent voltage spikes.
  • Low Forward Voltage Drop: The low forward voltage drop feature ensures that power loss is kept to a minimum when current is conducted through the diode, contributing to the energy efficiency of the overall system.
  • Dual Diode Configuration: The device comes in a common anode dual diode configuration, which allows for its use in parallel or push-pull configurations, providing design flexibility to engineers.
  • High Temperature Operation: Capable of operating at high temperatures, the MUR3040WTG is suitable for use in harsh environments where thermal stability is a critical factor.

Specifications

Parameter Value Reverse Voltage 400V Average Rectified Forward Current 30A Peak Repetitive Reverse Voltage 400V Max. Operating Junction Temperature -65 to 175°C Package / Case TO-247

The MUR3040WTG from ON Semiconductor represents a reliable and efficient solution for designers looking to enhance the performance of their power management systems. With its combination of speed, robustness, and thermal resilience, this ultrafast rectifier is a top choice for industry professionals seeking quality and durability.
