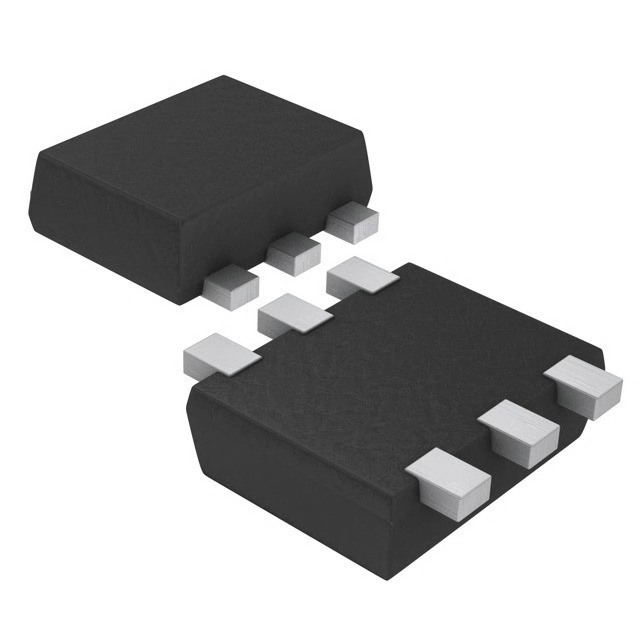

The ON Semiconductor MCH6337-TL-E is a high-performance, P-Channel MOSFET that is designed to meet the rigorous demands of modern electronic applications. With its compact form factor and efficient power handling capabilities, it is an ideal choice for power management tasks in a range of devices.
Key Features
- Device Type: P-Channel MOSFET
- Configuration: Single
- Drain-Source Voltage (V<sub>DS): -30V
- Continuous Drain Current (I<sub>D): -6A
- Power Dissipation (P<sub>D): 1.25W
- Gate-Source Voltage (V<sub>GS): ±20V
- Drive Voltage (Max R<sub>DS(on), Min R<sub>DS(on)): 4.5V, 10V
- Input Capacitance (C<sub>iss): 675pF
- Output Capacitance (C<sub>oss): 210pF
- Reverse Transfer Capacitance (C<sub>rss): 105pF
Performance and Efficiency
The MCH6337-TL-E MOSFET is engineered for low on-resistance and high-speed switching. This makes it suitable for various applications, including load switches, power management circuits, and high-efficiency DC-DC converters. Its low threshold voltage ensures that it can be driven by low-voltage logic signals, making it compatible with modern microcontrollers and digital ICs.
Durability and Reliability
Built to last, the MCH6337-TL-E is encapsulated in a robust package that offers excellent thermal performance and durability. It is characterized by its high reliability and is designed to withstand the thermal challenges of high-density circuit designs.
Applications
With its versatile characteristics, the MCH6337-TL-E is suitable for a wide array of applications, including:
- Power management for portable devices
- DC-DC converters
- Battery management systems
- Load switch circuits
- Reverse battery protection
Environmental Compliance
The ON Semiconductor MCH6337-TL-E MOSFET is compliant with RoHS standards, ensuring that it meets global environmental regulations and is free from hazardous substances.
