ON Semiconductor MC74HC1G14DTT1G Single Schmitt-Trigger Inverter

The ON Semiconductor MC74HC1G14DTT1G is a high-performance CMOS single Schmitt-trigger inverter integrated circuit designed for use in a variety of digital applications. This device features robust noise immunity and hysteresis characteristics, making it an ideal choice for signal conditioning, pulse shaping, and implementing oscillators.

The MC74HC1G14DTT1G operates over a wide voltage range from 2V to 6V and offers a balanced propagation delay and transition times, providing a reliable solution for high-speed operations. The device is fabricated with silicon gate CMOS technology, which ensures low power consumption and minimizes the risk of latch-up due to the inherent immunity to overvoltage.

Key Features:

• Logic Type: Schmitt-Trigger Inverter
• Supply Voltage Range: 2V to 6V
• High Noise Immunity: VNIH = VNIL = 28% VCC (min)
• Low Power Consumption: 20 nA (max) ICC at TA = 25°C
• Propagation Delay Time: tpd = 8 ns (typ) at VCC = 5V, CL = 50 pF, TA = 25°C
• Operating Temperature Range: -55°C to 125°C
• Mounting Type: Surface Mount

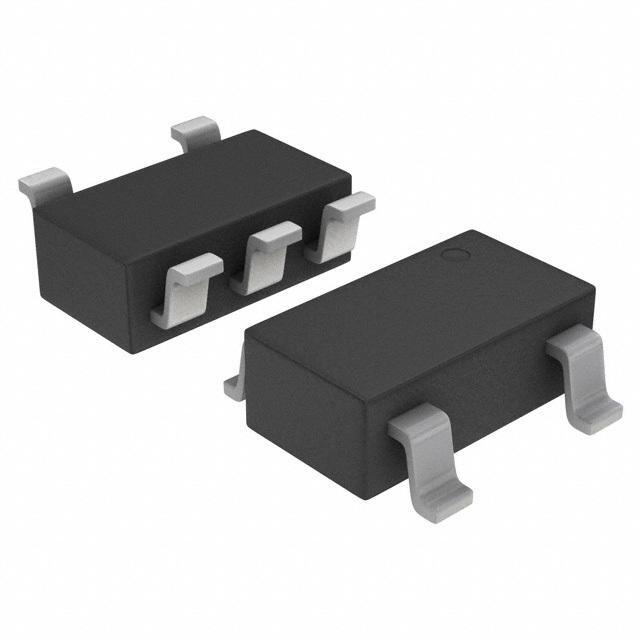

• Package / Case: SOT-23-5

The MC74HC1G14DTT1G is suitable for interfacing with TTL levels and can be used in a variety of logic systems due to its wide input voltage range. The Schmitt-trigger action at the input provides a pulse shaping effect, which is beneficial when dealing with noisy inputs or generating stable output pulses from irregular signals.

The compact SOT-23-5 package makes this inverter an excellent choice for space-constrained applications. Its pin configuration is optimized for simplified PCB routing. Whether it's used in consumer electronics, automotive, or industrial control systems, the MC74HC1G14DTT1G is a versatile component that enhances the reliability and performance of digital circuits.

Overall, ON Semiconductor's MC74HC1G14DTT1G is a testament to the company's commitment to providing innovative, high-quality components for the ever-evolving electronics industry.
