Product Overview: MC74F534N by ON Semiconductor

The MC74F534N is a high-performance integrated circuit manufactured by ON Semiconductor, a leading provider of semiconductor-based solutions. This product is designed to meet the needs of a wide range of electronic applications, offering reliability and efficiency in digital signal processing.

Key Features

• Octal D-Type Flip-Flop: The MC74F534N features eight edge-triggered, D-type flip-flops, making it ideal for use in applications requiring data storage or transfer.
• Inverted Outputs: Each flip-flop has an inverted output, providing complementary data outputs for the stored information.
• 3-State Outputs: The device includes 3-state output control, enabling multiple devices to share a common bus line without interference.
• High-Speed Operation: Designed for fast performance, the MC74F534N is capable of operating at high clock frequencies, ensuring quick data processing and transfer speeds.
• Low Power Consumption: ON Semiconductor's commitment to energy efficiency is reflected in the low power consumption of the MC74F534N, making it suitable for power-sensitive applications.

Applications

The MC74F534N is versatile and can be used in various applications, including:

• Data storage and retrieval systems
• Communication systems
• Computers and computer peripherals
• Instrumentation and control circuits
• Bus interface and driver circuits

Technical Specifications

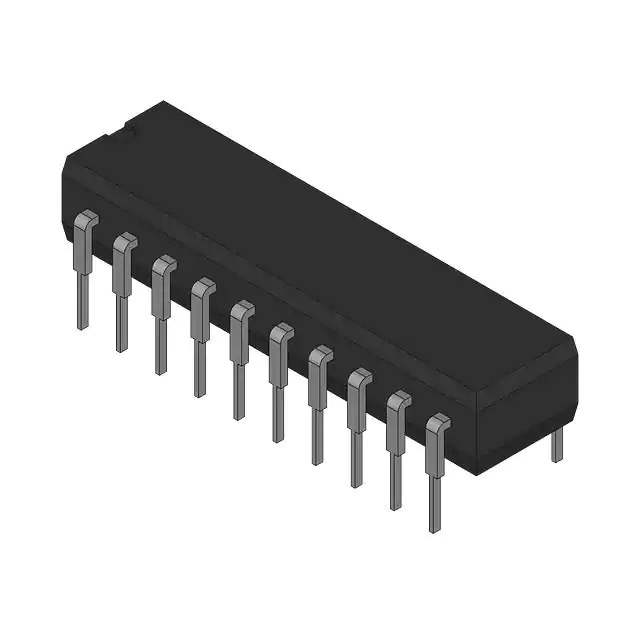

The MC74F534N is housed in a plastic DIP-20 package and operates over a wide temperature range. It is compatible with TTL logic levels, ensuring easy integration into existing systems. The device also features a high fan-out capability, allowing it to drive multiple inputs without degrading signal quality.

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the MC74F534N is no exception. It is produced using the latest manufacturing techniques and undergoes rigorous testing to ensure it meets the highest standards of reliability and performance.
