ON Semiconductor MC34074DG Operational Amplifier

The MC34074DG is a high-performance operational amplifier (op-amp) manufactured by ON Semiconductor, renowned for its wide bandwidth and low input offset voltage. This device is part of the MC34074 series, designed to provide optimal performance in a variety of electronic applications requiring high precision and power efficiency.

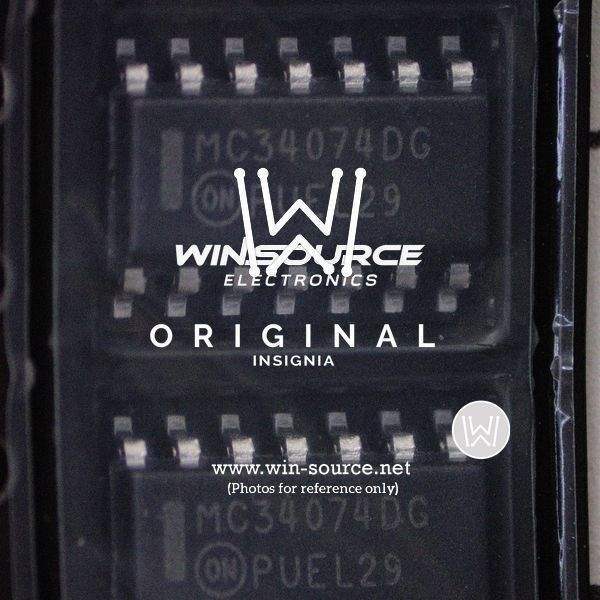

The MC34074DG comes in a SOIC-14 package, making it suitable for space-constrained applications. It operates over a wide range of power supply voltages, from +3V to +44V or ±1.5V to ±22V dual supplies, which allows for flexible integration into both low and high voltage systems.

With a slew rate of 13 V/µs and a gain bandwidth product of 4.5 MHz, this op-amp is capable of handling fast signals and is well-suited for audio processing, active filters, and fast signal conditioning circuits. Its low input bias current and low input offset voltage ensure accurate signal amplification with minimal error, making it ideal for precision analog applications.

The MC34074DG features a total harmonic distortion plus noise (THD+N) characteristic that is favorable for audio applications, ensuring clear and high-fidelity signal amplification. Additionally, the device's extended temperature range of -40°C to +105°C guarantees stable performance across various environmental conditions.

ON Semiconductor's commitment to quality ensures that the MC34074DG op-amp meets stringent reliability standards, making it a trustworthy choice for industrial, automotive, and consumer electronics applications. Whether it's for instrumentation, sensor interfacing, or any other application requiring a reliable and high-quality operational amplifier, the MC34074DG stands out as a top contender.

In summary, the MC34074DG from ON Semiconductor is a versatile and reliable operational amplifier that offers a blend of high-speed performance, precision, and robustness suitable for a wide array of electronic applications.
