Products specifications

Categories Discrete Semiconductor Products
Features Diode Schottky 80 V 10A Through Hole TO-220-2
Manufacturer ON Semiconductor
Series SWITCHMODE™
Package Tube
Part Status Obsolete
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Through Hole
Package TO-220-2
Case / Package TO-220-2
Family Name MBR1080
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 50
Popularity High
Supply and Demand Status Balance
Win Source Part Number 925971-MBR1080
Ultra Librarian 3D Model Ultra Librarian MBR1080 CAD Model

Description

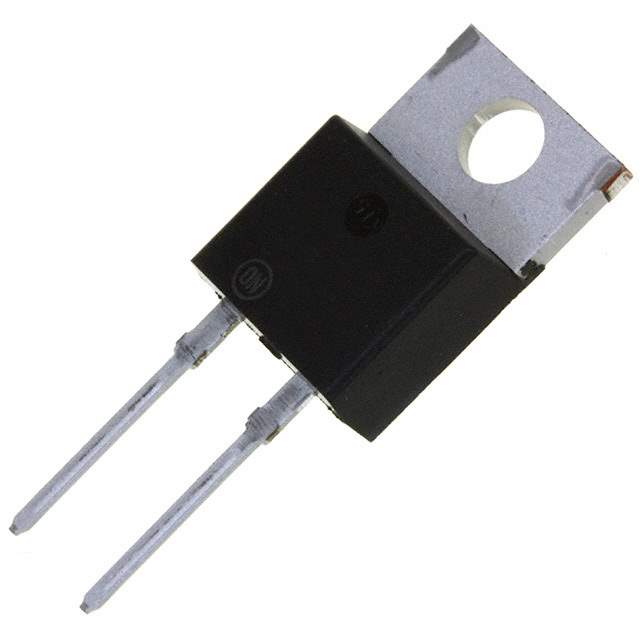

Introducing the MBR1080 Schottky Rectifier by ON Semiconductor

ON Semiconductor, a renowned leader in energy-efficient innovations, presents the MBR1080, a high-performance Schottky Barrier Rectifier designed for applications requiring low voltage drop and high efficiency. The MBR1080 is a testament to ON Semiconductor's commitment to providing state-of-the-art power management solutions.

The MBR1080 is a 10A rectifier that operates with a peak repetitive reverse voltage of 80V, making it suitable for a wide range of applications. Its low forward voltage drop minimizes power loss and improves efficiency, which is crucial for energy-sensitive designs. Additionally, the device features a high surge capability, ensuring it can handle overcurrent conditions without failing.

Constructed with a guard ring for enhanced ruggedness and long-term reliability, the MBR1080 is encapsulated in a robust package that ensures its durability under harsh conditions. Its compact TO-220 package is widely accepted in the industry and allows for easy integration into various circuit designs. The MBR1080 is also lead-free and RoHS compliant, reflecting ON Semiconductor's dedication to environmental sustainability.

Key features of the MBR1080 include:

  • Low forward voltage drop to maximize system efficiency
  • High surge capacity for protection against sudden overcurrent events
  • Guard ring for overvoltage protection and enhanced reliability
  • TO-220 package for optimal thermal performance and ease of installation
  • Lead-free and RoHS compliant for environmental sustainability

The MBR1080 is ideal for use in high-frequency applications, including switch-mode power supplies, converters, free-wheeling diodes, and reverse battery protection. Its performance characteristics make it a preferred choice for engineers and designers looking to optimize their power systems for both performance and energy efficiency.

With the MBR1080, ON Semiconductor continues to set the standard for Schottky rectifiers, offering a product that not only meets the demands of modern electronic systems but also supports the global initiative for greener and more energy-efficient technologies.
