The LM358NG by ON Semiconductor is a versatile and widely used dual operational amplifier, ideal for a variety of applications that require a balance between cost and performance. This operational amplifier features two independent, high-gain, internally frequency-compensated amplifiers designed to operate from a single power supply over a wide range of voltages. The dual op-amp configuration makes it a popular choice for designers due to its flexibility and ease of use in a broad array of electronic circuits.

Key Features

• Single Supply Operation: Operates from a single power supply over a range of voltages, typically from 3V to 32V, and up to ±16V for dual supply applications.
• Low Power Consumption: The LM358NG is optimized for low power consumption, making it suitable for battery-powered devices and energy-efficient applications.
• Wide Bandwidth: It has a bandwidth of 1 MHz, which is adequate for many signal processing tasks.
• Input Offset Voltage: It offers a typical input offset voltage of 2mV, which helps in maintaining accuracy in signal amplification.
• Common Mode Input Range: Includes ground, which is necessary for single-supply applications.
• Differential Input Voltage Range: Equal to the power supply voltage, offering excellent flexibility in a wide range of applications.

Applications

The LM358NG is suitable for various applications such as:

• Transducer Amplifiers
• DC Gain Blocks
• All the Conventional Op Amp Circuits
• Two-Stage Linear Amplifiers
• Active Filters
• General Signal Conditioning

Package and Quality

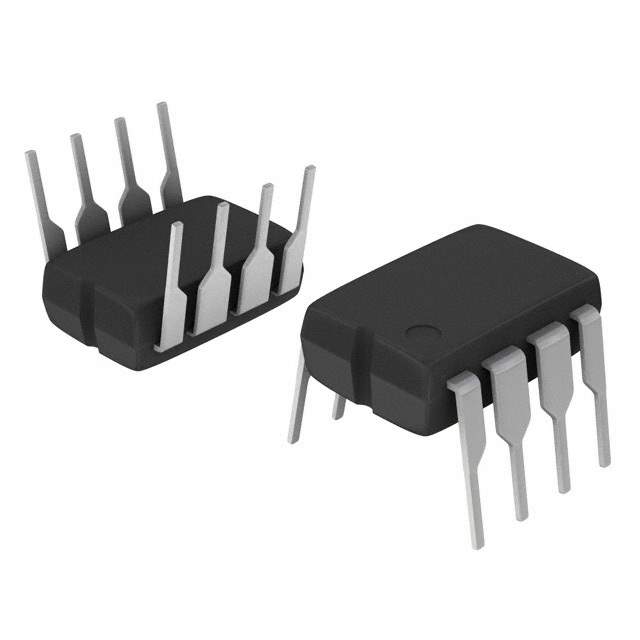

The LM358NG is provided in a PDIP-8 (Plastic Dual-In-Line Package) making it easy to handle and integrate into printed circuit boards. ON Semiconductor ensures high-quality standards, and the LM358NG is no exception, providing reliable and consistent performance for industrial, commercial, and consumer applications.

Environmental and Regulatory Compliance

ON Semiconductor is committed to environmental stewardship. The LM358NG complies with RoHS (Restriction of Hazardous Substances) directives, ensuring that it meets global environmental and regulatory standards.
