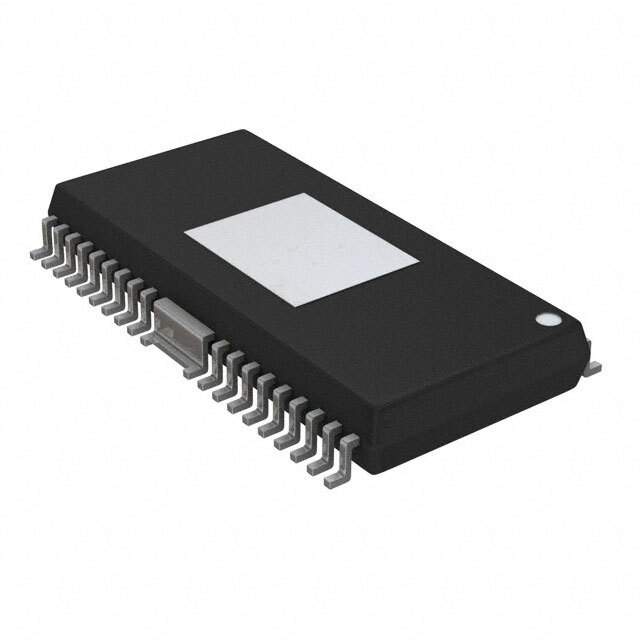

The ON Semiconductor LA6245P-TLM-E is a high-performance motor driver that is designed to cater to a wide range of motor driving needs. This versatile component is an ideal choice for those looking to drive small stepping motors or DC brush motors with precision and efficiency.

Key Features

• Integrated Dual H-Bridge: The LA6245P-TLM-E comes with an integrated dual H-Bridge, allowing for the control of two DC motors or one stepping motor with ease. This feature simplifies the circuit design and reduces the number of external components required.
• High Voltage Capability: With an operating voltage range of up to 46V, this motor driver can handle a broad range of motor specifications, making it suitable for various applications.
• High Output Current: It can deliver an output current of up to 1A, which is sufficient for driving small to medium-sized motors.
• Low Saturation Voltage: The low saturation voltage of the H-Bridge outputs ensures efficient operation, minimizing power loss and heat generation during motor operation.
• Thermal Shutdown Function: The built-in thermal shutdown function protects the device from overheating, enhancing its reliability and longevity.

Applications

The LA6245P-TLM-E motor driver is suitable for a variety of applications, including:

• Office automation machines
• Home appliances
• Battery-powered devices
• Small industrial equipment

Package and Quality

This motor driver is offered in a compact package, which is ideal for space-constrained applications. The LA6245P-TLM-E is also RoHS compliant, ensuring adherence to the latest environmental standards and regulations.

In summary, the ON Semiconductor LA6245P-TLM-E is a robust and reliable motor driver that offers a combination of high voltage capability, high output current, and integrated dual H-Bridge configuration. Its advanced features, such as thermal shutdown and low saturation voltage, provide designers with a powerful tool for creating efficient and effective motor control solutions.
