Products specifications

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Tube
Status Obsolete
Transistor Polarity N-Channel
Technology MOSFET
Vds - Drain-Source Breakdown Voltage 60V
Id - Continuous Drain Current 20A
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Maximum) at Id, Vgs 32mOhm at 20A, 10V
Gate Source Voltage(th) (Maximum) at Id 3V at 250μA
Gate Charge (Qg) (Maximum) at Vgs 34nC at 10V
Gate Source Voltage (Maximum) ±16V
Input Capacitance (Ciss) (Maximum) at Vds 1060pF at 25V
Power Dissipation (Maximum) 85W
Temperature Range - Operating -55°C ~ 175°C
Mounting Style Through Hole

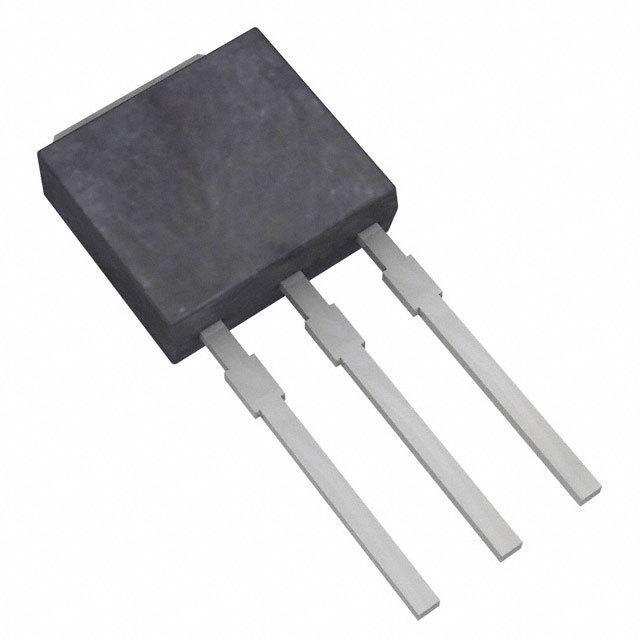

Supplier Device Package I-PAK
Manufacturer Package TO-251-3 Short Leads, IPak, TO-251AA
Manufacturer Pack Quantity 1,800
MSL Level 1 (Unlimited)
Win Source Part Number 1182470-HUF76423D3
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian HUF76423D3 CAD Model

Description

The ON Semiconductor HUF76423D3 is a high-performance N-channel power MOSFET designed for a variety of applications that demand high efficiency and reliability. This robust MOSFET is a part of ON Semiconductor's extensive portfolio of power management solutions, tailored to meet the requirements of modern electronic devices.

Key Features

  • Low On-Resistance: The HUF76423D3 boasts an exceptionally low on-resistance (R<sub>DS(on)), which minimizes conduction losses and enhances overall efficiency.
  • High Current Capability: This MOSFET is capable of handling high currents, making it suitable for demanding power applications.
  • Fast Switching Speed: The device's fast switching characteristics ensure efficient operation at high frequencies, which is crucial for power supply and conversion systems.
  • Robust Thermal Performance: With an excellent thermal design, the HUF76423D3 can operate at higher temperatures while maintaining its performance, extending the lifespan of the product.

Applications

The versatility of the HUF76423D3 allows it to be used in a wide range of applications, including:

  • DC/DC Converters
  • Motor Drives
  • Power Management Systems
  • Automotive Applications
  • Switch Mode Power Supplies (SMPS)

Product Specifications

The HUF76423D3 is encapsulated in a TO-252 DPAK package, providing a compact footprint while ensuring adequate heat dissipation. The device features a maximum drain-source voltage (V<sub>DSS) of 60V, which allows it to be used in a variety of mid-voltage applications. The maximum continuous drain current (I<sub>D) is rated at 75A, making it capable of driving high-power circuits. Additionally, the MOSFET has a maximum power dissipation (P<sub>D) of 190W, allowing it to handle significant power levels without degradation of performance.

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the HUF76423D3 is no exception. It is manufactured to meet rigorous standards, ensuring high reliability and performance consistency. The device is RoHS compliant, adhering to environmental standards and regulations.

For designers and engineers looking for a robust and efficient power MOSFET solution, the HUF76423D3 from ON Semiconductor is an excellent choice, offering superior performance in a wide array of electronic applications.
