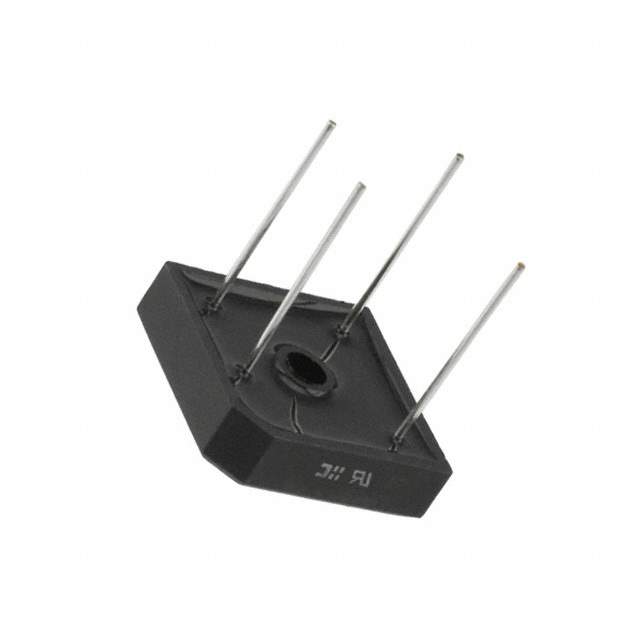

The ON Semiconductor GBPC1204W is a single-phase glass passivated bridge rectifier designed for efficient and reliable operation in a variety of applications. This robust component is a crucial part of power conversion systems, allowing for the conversion of alternating current (AC) to direct current (DC), which is essential for powering semiconductor devices that require a steady DC input.

Key Features:

• High Surge Current Capability: The GBPC1204W is capable of handling high surge currents, making it suitable for applications that experience short bursts of high power demand.
• High Case Dielectric Strength: With a case dielectric strength of 1500V RMS, this bridge rectifier offers excellent insulation and reliability.
• Low Forward Voltage Drop: The low forward voltage drop feature ensures that power loss is minimized during the rectification process, leading to higher efficiency.
• High Reliability: Glass passivated chip junctions ensure long-term reliability and stability of the rectifier's performance.
• Wide Operating Temperature Range: The device can operate effectively over a wide temperature range, making it suitable for harsh environments.
• Easy Mounting: A universal 3-way terminal connection allows for easy mounting and flexibility in design.
• RoHS Compliant: The GBPC1204W is compliant with RoHS standards, ensuring that it is free from hazardous substances and environmentally friendly.

Applications:

The ON Semiconductor GBPC1204W is ideal for use in a variety of electronic applications, including:

• Power supplies
• Converters
• AC-to-DC bridges
• Power control devices
• Office machines
• Telecommunication equipment

Technical Specifications:

• Maximum Repetitive Reverse Voltage: 400V
• Maximum RMS Bridge Input Voltage: 280V
• Maximum DC Blocking Voltage: 400V
• Maximum Average Forward Rectified Output Current: 12A at TA = 50°C
• Operating Temperature Range: -55°C to +150°C

In conclusion, the ON Semiconductor GBPC1204W bridge rectifier is a high-performance solution for AC-to-DC conversion, offering durability, high efficiency, and reliability for a wide range of electronic applications.
