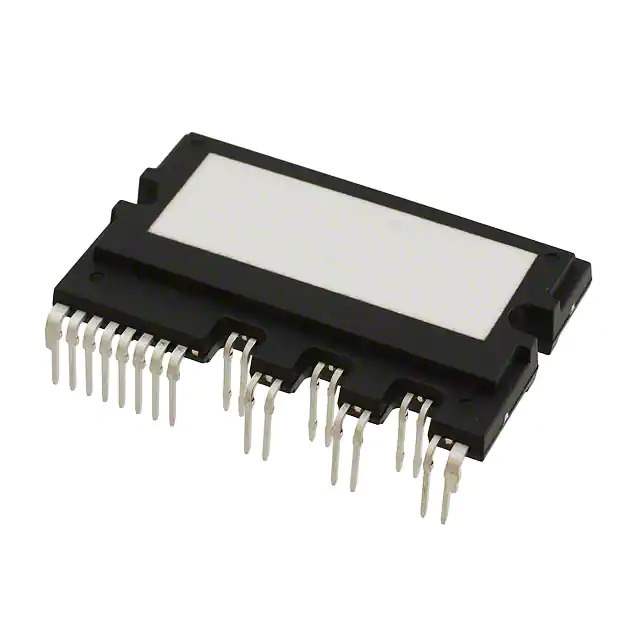

ON Semiconductor FSBB20CH120D Smart Power Module

The ON Semiconductor FSBB20CH120D is a cutting-edge smart power module that offers a compact, high-performance solution for a wide range of power applications. Designed with advanced IGBT technology, this module is well-suited for driving three-phase brushless DC motors, providing efficient power management in applications such as air conditioners, washing machines, refrigerators, and other home appliances, as well as industrial motor drives.

Featuring a 1200V, 20A rating, the FSBB20CH120D is capable of handling high voltage and current levels, making it a robust choice for demanding environments. The module integrates multiple components into a single package, including IGBTs, freewheeling diodes, and a gate drive circuit. This integration not only saves space but also simplifies the design and enhances the reliability of the overall system.

One of the key advantages of the FSBB20CH120D is its built-in over-current, over-temperature, and under-voltage lockout protection features. These protection mechanisms ensure the longevity and safe operation of the module by preventing damage due to abnormal operating conditions. Additionally, the module's low-loss characteristics ensure high efficiency, which is critical for energy-saving applications.

The FSBB20CH120D comes in an industry-standard package, which allows for easy mounting and compatibility with existing designs. Its excellent thermal performance is attributed to the Direct Bonded Copper (DBC) substrate, which provides superior heat dissipation. This feature is particularly important in applications where maintaining a low operating temperature is crucial for performance and reliability.

In summary, the ON Semiconductor FSBB20CH120D smart power module is a high-quality, integrated solution for efficient power control in three-phase motor applications. Its high voltage and current capabilities, combined with built-in protection features and excellent thermal management, make it a top choice for designers looking to enhance the performance and reliability of their power systems.
