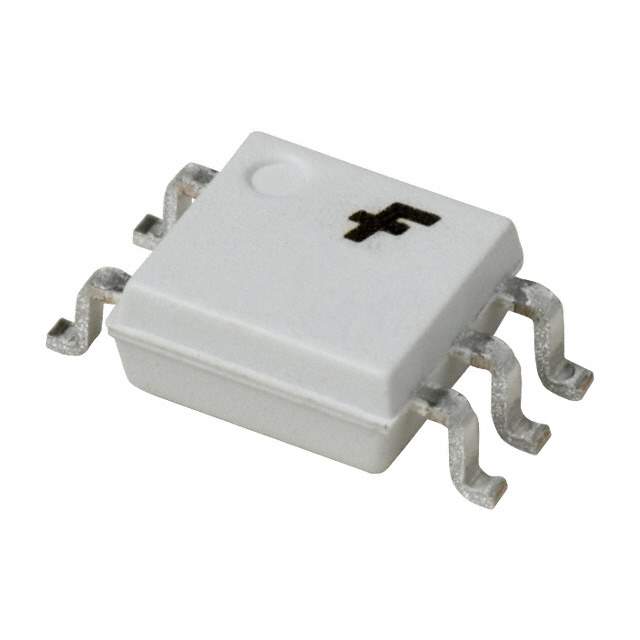

ON Semiconductor FODM452R1 Optocoupler

The FODM452R1 is a high-performance optocoupler product from ON Semiconductor, designed to provide efficient electrical isolation between input and output circuits. It is a critical component used in a variety of applications including industrial systems, consumer electronics, and communication devices where signal integrity and insulation are of utmost importance.

Features

• High Isolation Voltage: The device offers an isolation voltage rated at 3750Vrms, providing excellent protection against high voltage transients and ensuring safe signal transmission.
• Current Transfer Ratio (CTR): It features a Current Transfer Ratio (CTR) of 100% to 300% at an input current of 5mA, delivering consistent performance and reliable signal coupling.
• Low Input Current: With a low input current of just 1mA, the FODM452R1 is optimized for low power consumption, making it suitable for energy-sensitive applications.
• High-Speed Switching: The optocoupler boasts a high-speed switching capability that is ideal for high-frequency operations.
• Underwriters Laboratories (UL) Recognized: The FODM452R1 is UL recognized, ensuring that it meets stringent safety standards for electrical devices.

Applications

The FODM452R1 is versatile and can be utilized in a wide range of applications, including:

• Isolated Line Receiver
• Computer Peripheral Interface
• Microprocessor System Interface
• Power Supply Regulation and Monitoring
• Switching Power Supplies
• AC/DC Input Modules

Technical Specifications

The FODM452R1 is housed in a 4-pin Small Outline package and operates over a temperature range of -40°C to +85°C. It is RoHS compliant and adheres to the latest environmental standards, ensuring minimal impact on the environment while providing robust performance.

Conclusion

Overall, the ON Semiconductor FODM452R1 is a highly reliable and efficient solution for applications requiring electrical isolation. Its robust design, high isolation voltage, and low power consumption make it an excellent choice for designers looking to integrate isolation in their circuits without compromising on performance or safety.
