ON Semiconductor FODM121C Optocoupler

The ON Semiconductor FODM121C is a high-performance optocoupler that serves as a critical component for electrical isolation and signal transfer between two isolated circuits. This optoelectronic device ensures that high voltages cannot pass between its input and output, making it an ideal choice for a variety of applications including industrial controls, power supply circuits, and digital logic interfaces.

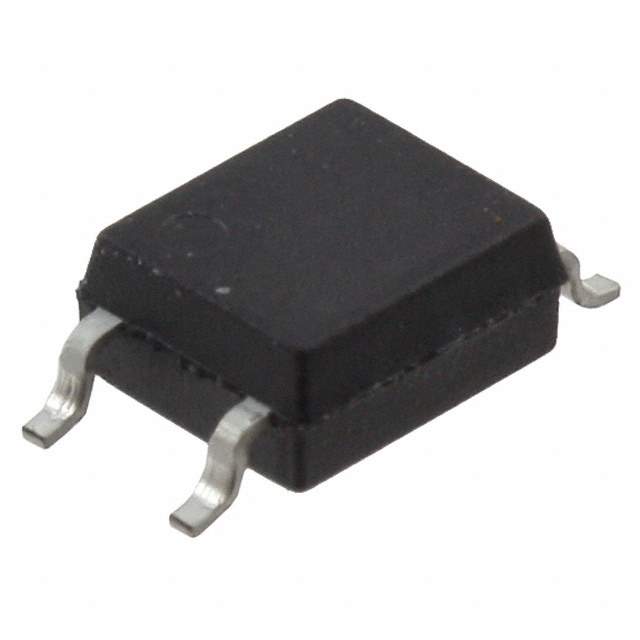

The FODM121C features a gallium arsenide (GaAs) infrared emitting diode, which is optically coupled to a silicon phototransistor detector. The LED and phototransistor are housed within a compact 4-pin Mini-Flat package, which offers excellent isolation voltage (3750Vrms) while maintaining a small footprint on the PCB.

Key specifications of the FODM121C include a forward current of 60mA, a collector-emitter voltage of 70V, and a collector current of 50mA. The optocoupler also has a current transfer ratio (CTR) of 50% to 600% at an input current of 5mA, providing a reliable and stable signal transfer from the input LED to the output phototransistor.

For designers and engineers, the FODM121C offers several benefits:

• Electrical Isolation: With its high isolation voltage, the FODM121C ensures that electronic circuits remain protected from high voltage spikes and surges.
• Compact Design: The Mini-Flat package is not only space-efficient but also allows for high-density mounting on PCBs.
• Performance: The optocoupler's fast switching times and high CTR make it suitable for both digital and analog signal applications.
• Versatility: It can be used in a wide range of operating temperatures, which makes it suitable for industrial and consumer applications.

The FODM121C is also compliant with various international safety standards, including UL1577 and DIN EN/IEC 60747-5-5, which assures users of its reliability and safety in operation.

In summary, the ON Semiconductor FODM121C optocoupler is a versatile and reliable choice for designers who require electrical isolation in their circuits without compromising on performance or space. Its robust design and compliance with safety standards make it a go-to component for a multitude of applications.
