The ESD9R3.3ST5G is a state-of-the-art ESD protection device designed and manufactured by ON Semiconductor, a leading provider of semiconductor-based solutions. This product is engineered to protect sensitive electronic equipment from electrostatic discharge (ESD) that can occur during manufacturing, shipping, or when devices are in use.

Key Features

• Low Clamping Voltage: The ESD9R3.3ST5G offers a low clamping voltage, which ensures that even when an ESD event occurs, the voltage spike is kept to a minimum, protecting sensitive circuit components.
• Fast Response Time: With a rapid response time to ESD strikes, this device provides immediate protection, preventing damage to the system.
• Low Capacitance: The design of this ESD protector features low capacitance, making it suitable for high-speed data lines without compromising signal integrity.

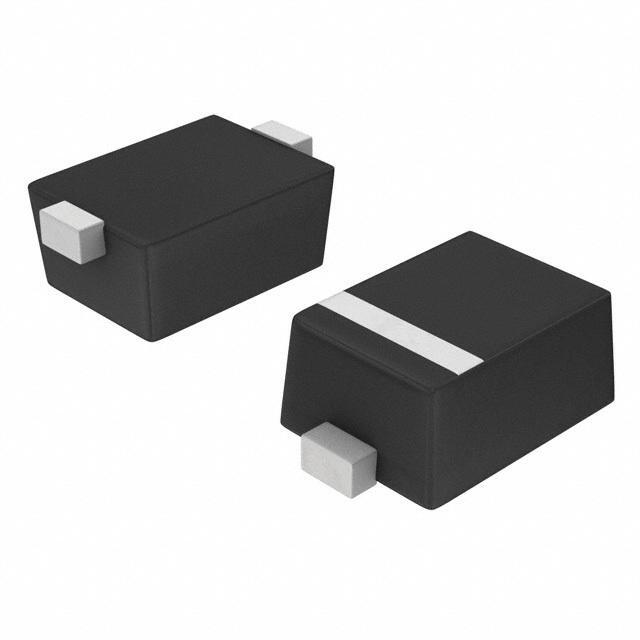

• Small Package Size: The compact SOD-923 package allows for space-saving on PCBs, making it an ideal choice for portable and space-constrained applications.
• ISO 7637-2 & IEC 61000-4-2 Compliance: The device meets the stringent requirements of these standards, ensuring reliable protection against ESD and electrical transient threats.

Applications

The ESD9R3.3ST5G is versatile and can be used in a variety of applications, including:

• Portable electronics such as smartphones and tablets
• Computer interfaces like USB, HDMI, and Ethernet
• Consumer electronics, including digital cameras and audio devices
• Medical devices with sensitive electronic components
• Automotive electronics that require robust ESD protection

Technical Specifications

For those looking to integrate ESD protection into their designs with minimal impact on performance and space, the ESD9R3.3ST5G from ON Semiconductor is an excellent choice. Its combination of features makes it a reliable and essential component for safeguarding electronic systems.
