ESD7383NCTBG

Part No ESD7383NCTBG
Manufacturer ON Semiconductor
Catalog TVS - Diodes
Description TVS DIODE 3VWM 10VC 4WLCSP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer ON Semiconductor
Packaging Reel - TR
Type Steering (Rail to Rail)
Unidirectional Channels 3
Voltage - Reverse Standoff (Typ) 3V
Minimum Breakdown Voltage 6V
Maximum Clamping Voltage 10V
Current - Peak Pulse (10/1000μs) 2.5A (8/20μs)
Power - Peak Pulse 50W
Power Line Protection Yes
Applications USB OTG
Operating Temperature Range -40°C ~ 85°C (TJ)
Mounting SMD

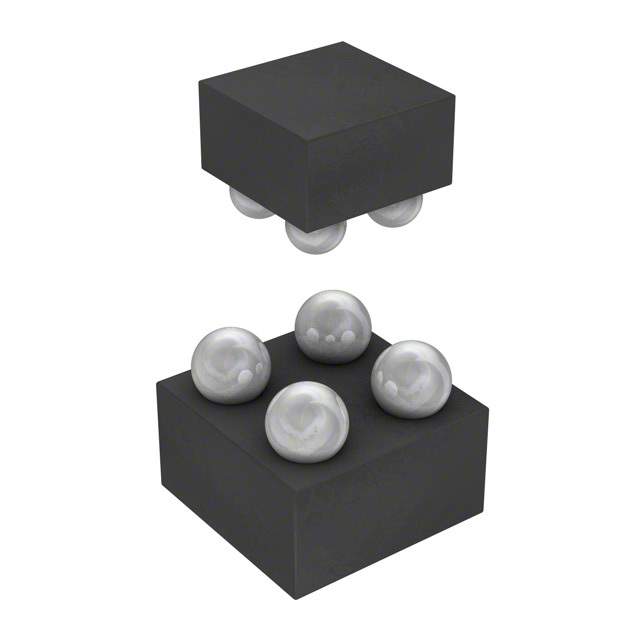

Package 4-UFBGA, WLCSP
Manufacturer Package 4-WLCSP (0.80x0.80)
Manufacturer Homepage www.onsemi.com
Win Source Part Number 718335-ESD7383NCTBG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ESD7383NCTBG CAD Model

Description

The ESD7383NCTBG from ON Semiconductor is a state-of-the-art ESD protection device designed to safeguard high-speed data lines from damaging electrostatic discharge (ESD) events. This compact and efficient component is an ideal solution for protecting sensitive electronics in a wide range of applications, including mobile phones, portable devices, digital cameras, and other consumer electronics that require high-speed data interfaces.

Key Features

  • Low Clamping Voltage: The ESD7383NCTBG offers excellent protection by providing a low clamping voltage, ensuring that sensitive components are shielded from the high energy of ESD strikes.
  • Ultra-Low Capacitance: With its ultra-low capacitance, this device is perfect for protecting high-speed data lines without compromising signal integrity, making it suitable for USB 2.0, HDMI, and other high-speed protocols.
  • Small Package Size: The compact SOT-23 package allows for minimal PCB space usage, which is crucial for space-constrained applications.
  • High ESD Protection: It is capable of withstanding ESD strikes of ±20 kV (air discharge) and ±15 kV (contact discharge) as per the IEC 61000-4-2 standard, providing robust protection for electronic devices.
  • Fast Response Time: The device reacts quickly to ESD events, ensuring immediate protection and minimizing the risk of damage to the protected circuit.

Applications

The ESD7383NCTBG is versatile and can be used in a variety of applications where ESD protection is critical. Its high level of protection and low capacitance make it especially well-suited for high-speed data interfaces and sensitive electronic components. Common applications include:

  • USB 2.0 and 3.0 Ports
  • HDMI Ports
  • DisplayPort Interfaces
  • Smartphone and Tablet I/O Ports
  • Portable Electronic Devices
  • Set-Top Boxes
  • Notebook Computers

Conclusion

The ESD7383NCTBG from ON Semiconductor provides designers with a reliable and efficient solution for ESD protection in high-speed data applications. Its combination of low clamping voltage, ultra-low capacitance, and compact form factor make it an excellent choice for modern electronic devices where space and performance are at a premium.
